Product Summary
The MX29L3211MC-10 is a 32-mega bit pagemode Flash memory organized as either 4M word x 8 or 2M byte x 16. It includes 32 sectors of 64K words. MXIC’s Flash memories offer the most cost-effective and reliable read/write non-volatile random access memory and fast page mode access. The MX29L3211MC-10 is packaged 44-pin SOP and 48-pin TSOP. It is designed to be reprogrammed and erased in-system or in-standard EPROM programmers. The standard MX29L3211MC-10 offers access times as fast as 100ns,allowing operation of high-speed microprocessors without wait. To eliminate bus contention, the MX29L3211MC-10 has separate chip enable CE, output enable (OE), and write enable (WE) controls.
Parametrics
MX29L3211MC-10 absolute maximum ratings: (1)Ambient Operating Temperature: 0℃ to 70℃; (2)Storage Temperature: -65℃ to 125℃; (3)Applied Input Voltage: -0.5V to Vcc+0.5V; (4)Applied Output Voltage: -0.5V to Vcc+0.6V; (5)VCC to Ground Potential: -0.5V to 4V; (6)A9: -0.5V to 12.5V.
Features
MX29L3211MC-10 features: (1)3.3V±10% write, erase and read; (2)Endurance: 10,000 cycles; (3)Fast random access time: 100ns/120ns; (4)Fast pagemode access time: 50ns; (5)Page access depth: 16 bytes/8 words; (6)Sector erase architecture: 32 equal sectors of 64K word each, Sector erase time: 200ms typical; (7)Auto Erase and Auto Program Algorithms: Automatically erases any one of the sectors or the whole chip with Erase Suspend capability, Automatically programs and verifies data at specified addresses.

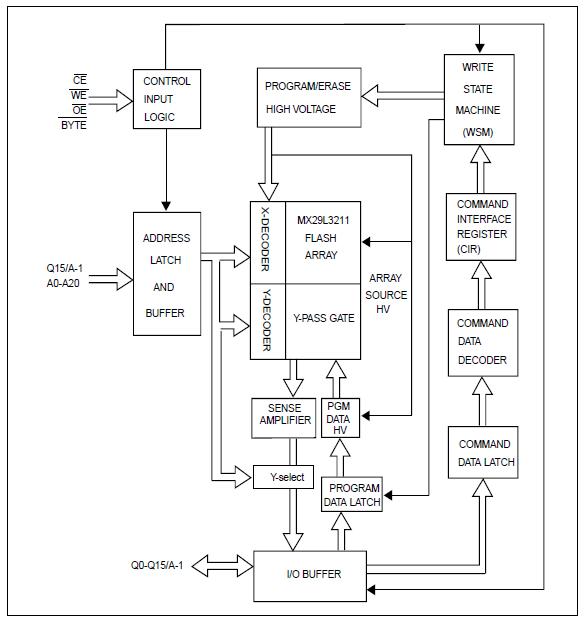

Diagrams
 |
