Product Summary
The MSP3415G-B8-V3 is a single-chip Multistandard Sound Processor. The MSP3415G-B8-V3 covers the sound processing of all analog TV standards worldwide, as well as the NICAM digital sound standards. The full TV sound processing, starting with analog sound IF signal-in, down to processed analog AF-out, is performed in a single chip.
Parametrics
MSP3415G-B8-V3 absolute maximum ratings: 1)TA, Ambient Operating Temperature: 0 to 70 ℃; (2)TS, Storage Temperature: -40 to 125℃; (3)VSUP1, First Supply Voltage AHVSUP: -0.3 to 9.0 V; (4)VSUP2, Second Supply Voltage DVSUP: -0.3 to 6.0 V; (5)VSUP3, Third Supply Voltage AVSUP: -0.3 to 6.0 V; (6)dVSUP23, Voltage between AVSUP and DVSUP AVSUP, DVSUP: -0.5 to 0.5 V. .
Features
MSP3415G-B8-V3 features: (1)All analog FM-Stereo A2 and satellite standards; (2)All NICAM standards; (3)Simultaneous demodulation of (very) high-deviation FM-Mono and NICAM; (4)Adaptive deemphasis for satellite (Wegener-Panda, acc. to ASTRA specification); (5)ASTRA Digital Radio (ADR) together with DRP 3510A; (6)Alignment free digital DBX noise reduction for BTSC Stereo and SAP.

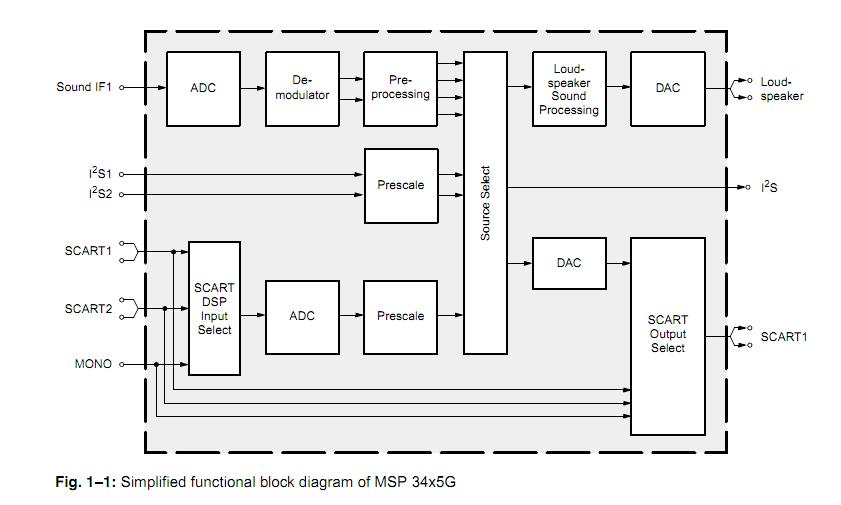

Diagrams
 |
