Product Summary
The MRF240A is an NPN silicon RF power transistor designed for Class C Amplifier Applications in VHF Mobile Radios.
Parametrics
MRF240A absolute maximum ratings: (1)IC: 8.0 A; (2)VCBO: 36 V; (3)VCEO: 18 V; (4)VEBO: 4.0 V; (5)PDISS: 100 W @ TC = 25℃; (6)TJ: -65 to +200℃; (7)TSTG: -65 to +150℃; (8)θJC: 2.9℃/W .
Features
MRF240A features: (1)PG = 9.0 dB Min. at 40 W /160 MHz; (2)ηC = 55% Min. at 40 W /160 MHz; (3)Omnigold Metalization System.

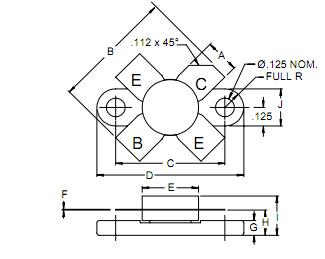

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MRF240A |
Advanced Semiconductor, Inc. |
Transistors RF Bipolar Power RF Transistor |
Data Sheet |
|
|
||||||||||||
