Product Summary

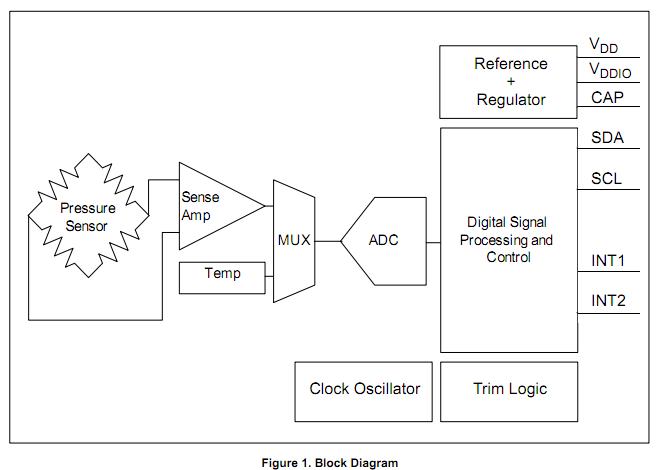

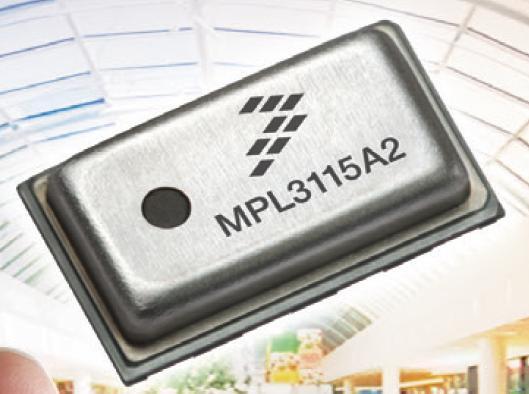

The MPL3115A2 is an I2C Precision Altimeter. The MPL3115A2 employs a MEMS pressure sensor with an I2C interface to provide accurate Pressure/Altitude and Temperature data. The sensor outputs are digitized by a high resolution 24-bit ADC. Typical active supply current is 40A per measurement-second for a stable 30 cm output resolution. Pressure output can be resolved with output in fractions of a Pascal, and Altitude can be resolved in fractions of a meter.The MPL3115A2 is offered in a 5 mm by 3 mm by 1.1 mm LGA package and specified for operation. The applications of the MPL3115A2 include High Accuracy Altimetry, Smartphones/Tablets, Personal Electronics Altimetry, GPS Dead Reckoning , GPS Enhancement for Emergency Services, Map Assist, Navigation and Weather Station Equipment.

Parametrics

MPL3115A2 absolute maximum ratings: (1)Maximum Applied Pressure Pmax: 500 kPa; (2)Supply Voltage VDD: -0.3 to 3.6 V; (3)Interface Supply Voltage VDDIO: -0.3 to 3.6 V; (4)Input Voltage on any Control Pin (SCL, SDA) VIN: -0.3 to VDDIO + 0.3 V; (5)Operating Temperature Range TOP: -40 to +85℃; (6)Storage Temperature Range TSTG: -40 to +125℃.

Features

MPL3115A2 features: (1)1.95V to 3.6V Supply Voltage, internally regulated by LDO; (2)1.6V to 3.6V Digital Interface Supply Voltage; (3)Fully Compensated internally; (4)Direct Reading, Compensated; (5)Programmable Events; (6)Autonomous Data Acquisition; (7)Resolution down to 1 ft. / 30 cm; (8)32 Sample FIFO; (9)Ability to log data up to 12 days using the FIFO; (10)1 second to 9 hour data acquisition rate ; (11)I2C digital output interface (operates up to 400 kHz).
