Product Summary
The MC68HC705C8ACFB is a low-cost, high-performance of 8-bit microcontroller unit (MCU). The MC68HC705C8ACFN, introduced in Appendix A. The MC68HC705C8ACFN is based on the customer-specified integrated circuit (CSIC) design strategy. It uses the central processor unit (CPU) and is available with a variety of subsystems, memory sizes and types, and package types.
Parametrics
MC68HC705C8ACFN absolute maximum ratings: (1)Supply voltage, VDD: -0.3 to +7.0 V; (2)Input voltage, VIn: VSS -0.3 to VDD +0.3V; (3)Programming voltage, VPP: VDD -0.3 to 16.0; (4)Bootstrap mode (IRQ pin only), VIn: VSS -0.3 to 2 x VDD + 0.3V; (5)Current drain per pin excluding VDD and VSS, I: 25 mA; (6)Storage temperature range, TSTG: -65 to +150℃.
Features
MC68HC705C8ACFN features: (1)M68HC05 central processor unit (CPU); (2)On-chip oscillator with crystal/ceramic resonator; (3)Memory-mapped input/output (I/O); (4)Selectable memory configurations; (5)Selectable programmable and/or non-programmable computer operating properly (COP) watchdog timers; (6)Selectable port B external interrupt capability; (7)Clock monitor; (8)High current drive on pin C7 (PC7); (9)24 bidirectional I/O lines and 7 input-only lines; (10)Serial communications interface (SCI) system; (11)Serial peripheral interface (SPI) system; (12)Bootstrap capability; (13)Power-saving stop, wait, and data-retention modes; (14)Single 3.0-volt to 5.5-volt supply (2-volt data-retention mode); (15)Fully static operation; (16)Software-programmable external interrupt sensitivity; (17)Bidirectional RESET pin.

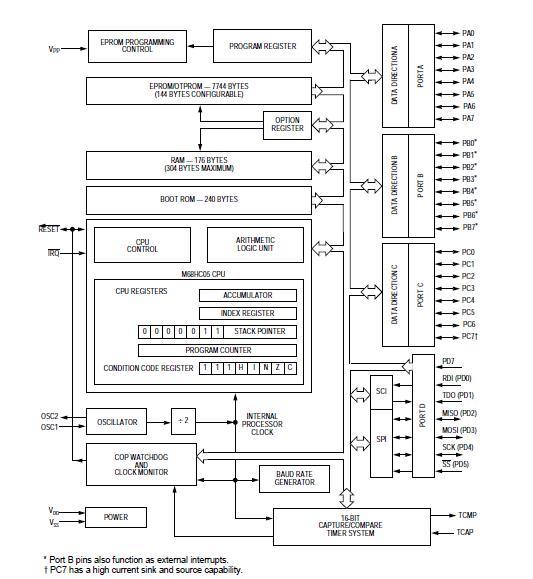

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MC68HC705C8ACFN |
|
IC MCU 4MHZ 8K OTP 44-PLCC |
Data Sheet |
Negotiable |
|
||||||||||||
 |
MC68HC705C8ACFNE |
Freescale Semiconductor |
8-bit Microcontrollers (MCU) HC05 CORE + 8K RAM + EPR |
Data Sheet |
|
|
||||||||||||
