Product Summary

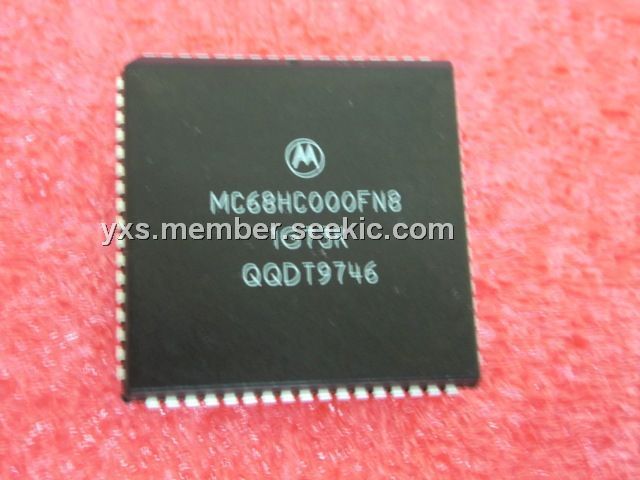

The MC68HC000FN8 is a microprocessor. The device has a 16 bit data bus implementation of the MC68HC000FN8 and is upward code-compatible with the MC68HC000FN8 virtual extensions and the MC68020 32 bit implementation of the architecture.
Parametrics
MC68HC000FN8 absolute maximum ratings: (1)supply voltage, VCC: -0.3 to 7.0V; (2)input voltage, Vin: -0.3 to 7.0V; (3)maximum operating temperature range, TA: TL to TH 0 yo 70℃; commercial extended C grade: -40 to 85℃; commercial extended I grade: 0 to 85℃; (4)storage temperature, Tstg: -55 to 150℃.
Features
MC68HC000FN8 features: (1)1632-bit data and address registers; (2)16-Mbyte direct addressing range; (3)program counter; (4)6 powerful instruction types; (5)operations on five main data types; (6)memory-mapped input/output(I/O); (7)14 addressing modes.

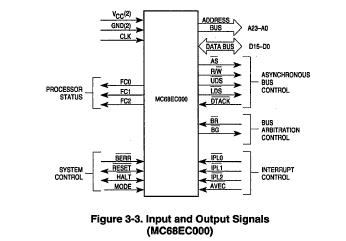

Diagrams
 |
