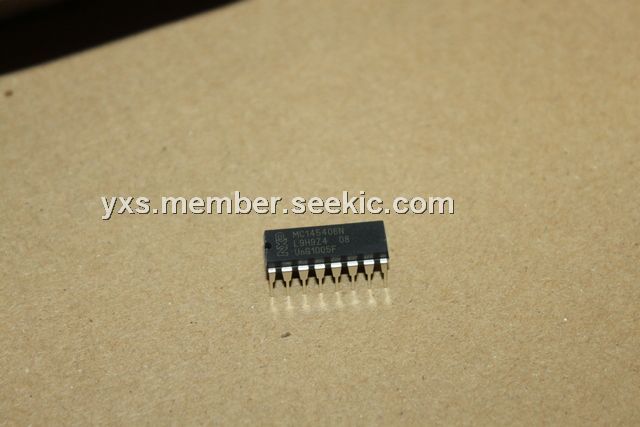

MC145406N

silicon–gate CMOS IC, SOP-16, – 0.5 to + 13.5V, ± 100 mA, 300Ω

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.60~2.80 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.60~2.80

PartNumber:: MC145406N

Brand:: NXP Semiconductors - nxp | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Jack's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-09-28

From Other Seller

Part Number:MC145406N
US $1.60 - 2.80
AT25256AW-10SU-2.7

US $0.65 - 1.50 / Piece
(0) Remove
HEF4051BT

US $0.15 - 1.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The MC145406N is a silicon–gate CMOS IC that combines three drivers and three receivers to fulfill the electrical specifications of standards EIA 232–E and CCITT V.28. The MC145406N feature true TTL input compatibility, slew–rate–limited output, power–off source impedance, and output typically switching to within 25% of the supply rails. The MC145406N can handle up to ± 25 V while presenting 3 to 7 kΩ impedance. Hysteresis in the receivers aids reception of noisy signals. By combining both drivers and receivers in a single CMOS chip, the MC145406N provides efficient, low–power solutions for EIA 232–E and V.28 applications.

Parametrics

MC145406N absolute maximum ratings: (1)DC Supply Voltages (VDD ≥ VCC) VDD: – 0.5 to + 13.5V; VSS: + 0.5 to – 13.5V; VCC:– 0.5 to + 6.0V; (2)Input Voltage Range, Rx1–3 Inputs, VIR: (VSS – 15) to (VDD + 15)V; DI1–3 Inputs:– 0.5 to (VCC + 0.5)V; (3)DC Current Per Pin: ± 100 mA; (4)Power Dissipation, PD: 1.0 W; (5)Operating Temperature Range, TA: – 40 to + 85℃; (6)Storage Temperature Rate, Tstg: – 85 to + 150℃.

Features

MC145406N features: (1)± 5 V to ±12 V Supply Range; (2)300–Ω Power–Off Source Impedance; (3)Output Current Limiting; (4)TTL Compatible; (5)Maximum Slew Rate = 30 V/μs; (6)± 25 V Input Voltage Range When VDD = 12 V, VSS = – 12 V; (7)3 to 7 kΩ Input Impedance; (8)Hysteresis on Input Switchpoint.
