Product Summary

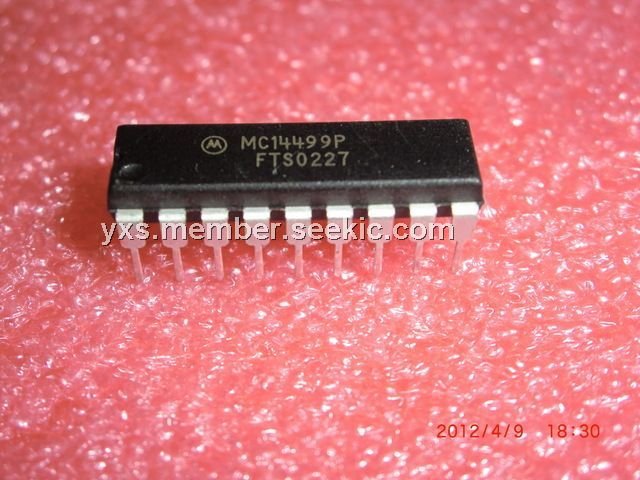

The MC14499P is a 7 segment alphanumeric LED decoder/driver with a serial interface port to provide communication with CMOS microprocessors and microcomputers. This device MC14499P features NPN output drivers which allow interfacing to common cathode LED displays through external series resistors.

Parametrics

MC14499P absolute maximum ratings: (1)DC Supply Voltage VDD: – 0.5 to + 7 V; (2)Input Voltage, All Inputs Vin: – 0.5 to VDD + 0.5 V; (3)Storage Temperature Range Tstg: – 65 to + 150℃.

Features

MC14499P features: (1)High–Current Segment Drivers On–Chip; (2)CMOS MPU compatible Input Levels; (3)Wide Operating Voltage Range: 4.5 to 6.5 V; (4)Operating Temperature Range: 0 to 70℃; (5)Drives Four Characters with Decimal Points; (6)Also See MC14489.

Diagrams

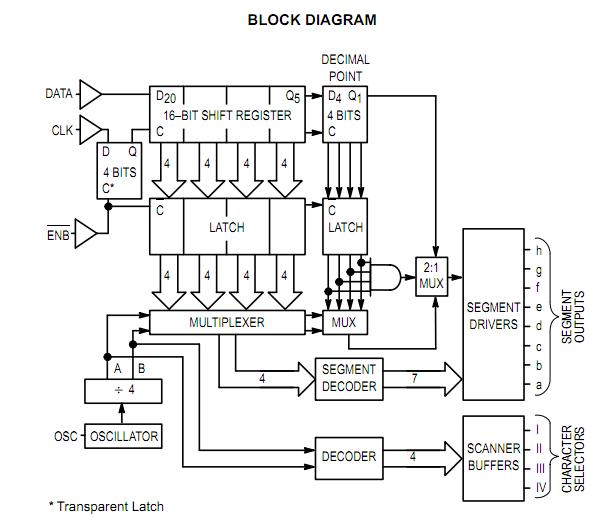

MC14499P block diagram
