Product Summary

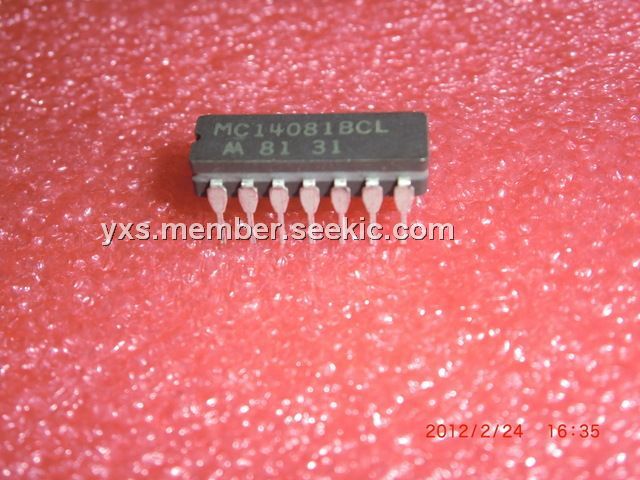

The MC14081BCL is a logic gate constructed with P and N channel enhancement mode devices in a single monolithic structure (Complementary MOS). Their primary use is where low power dissipation and/or high noise immunity is desired.
Parametrics
MC14081BCL absolute maximum ratings: (1)VDD DC Supply Voltage: – 0.5 to + 18.0 V; (2)Vin, Vout Input or Output Voltage (DC or Transient): – 0.5 to VDD + 0.5 V; (3)out Input or Output Current (DC or Transient), per Pin: ± 10 mA; (4)PD Power Dissipation, per Package: 500 mW; (5)Tstg Storage Temperature: – 65 to + 150℃; (6)TL Lead Temperature (Second Soldering): 260℃.
Features
MC14081BCL features: (1)Supply Voltage Range = 3.0 Vdc to 18 Vdc; (2)All Outputs Buffered; (3)Capable of Driving Two Low–power TTL Loads or One Low power Schottky TTL Load Over the Rated Temperature Range; (4)Double Diode Protection on All Inputs Except: Triple Diode Protection on MC14011B and MC14081B; (5)Pin–for–Pin Replacements for Corresponding CD4000 Series B Suffix Devices (Exceptions: MC14068B and MC14078B).
