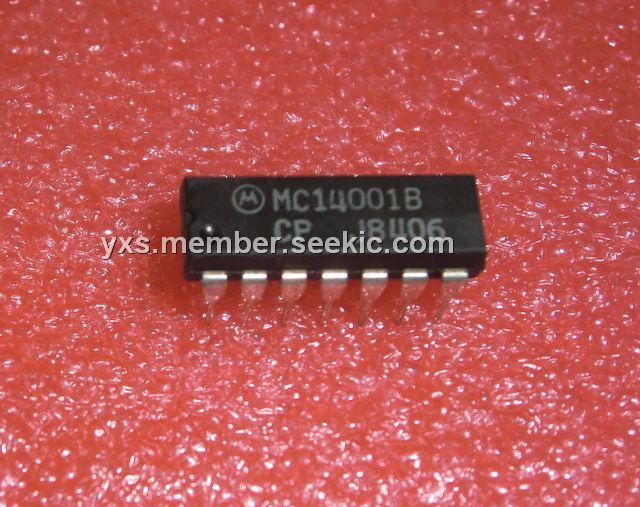

Product Summary

The MC14001B logic gate is constructed with P and N channel enhancement mode devices in a single monolithic structure (Complementary MOS). Their primary use is where low power dissipation and/or high noise immunity is desired.

Parametrics

MC14001B absolute maximum ratings: (1)DC Supply Voltage Range: -0.5 to +18.0 V; (2)Input or Output Voltage Range (DC or Transient): -0.5 to VDD + 0.5 V; (3)Input or Output Current (DC or Transient): ±10 mA; (4)Power Dissipation, per Package: 500 mW; (5)Ambient Temperature Range: -55 to +125 ℃; (6)Storage Temperature Range: -65 to +150 ℃; (7)Lead Temperature (8-Second Soldering): 260 ℃.

Features

MC14001B features: (1)Supply Voltage Range = 3.0 Vdc to 18 Vdc; (2)All Outputs Buffered; (3)Capable of Driving Two Low-power TTL Loads or One Low-power Schottky TTL Load Over the Rated Temperature Range; (4)Double Diode Protection on All Inputs Except: Triple Diode Protection on MC14011B and MC14081B; (5)Pin-for-Pin Replacements for Corresponding CD4000 Series B Suffix Devices; (6)Pb-Free Packages are Available.

Diagrams

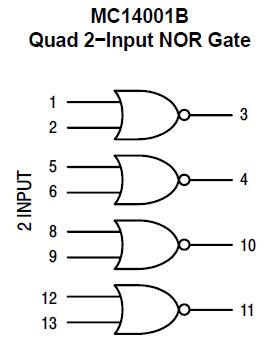

MC14001B logic diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MC14001B
MC14001B
Other

Data Sheet
Negotiable
MC14001BCP
MC14001BCP
ON Semiconductor
IC GATE NOR QUAD CMOS 14DIP
Data Sheet
1-2150: $0.13
MC14001BCPG
MC14001BCPG
ON Semiconductor
Gates (AND / NAND / OR / NOR) 3-18V Quad 2-Input NOR
Data Sheet
0-1: $0.30
1-25: $0.25
25-100: $0.18
100-500: $0.15
MC14001BDG
MC14001BDG
ON Semiconductor
Gates (AND / NAND / OR / NOR) 3-18V Quad 2-Input NOR
Data Sheet
0-1: $0.21
1-25: $0.17
25-100: $0.12
100-500: $0.10
MC14001BDR2G
MC14001BDR2G
ON Semiconductor
Gates (AND / NAND / OR / NOR) 3-18V Quad 2-Input NOR
Data Sheet
0-1: $0.19
1-25: $0.17
25-100: $0.13
100-500: $0.11
MC14001BDR2
MC14001BDR2

IC GATE NOR QUAD CMOS 14SOIC
Data Sheet
0-1: $0.33
1-25: $0.25
25-100: $0.18
100-250: $0.14
250-500: $0.11
500-1000: $0.09
MC14001BDTR2G
MC14001BDTR2G
ON Semiconductor
Gates (AND / NAND / OR / NOR) 3-18V Quad 2-Input NOR
Data Sheet
0-1: $0.55
1-25: $0.37
25-100: $0.26
100-500: $0.24
MC14001BDTR2
MC14001BDTR2

IC GATE NOR QUAD 2INPUT 14-TSSOP
Data Sheet
Negotiable
