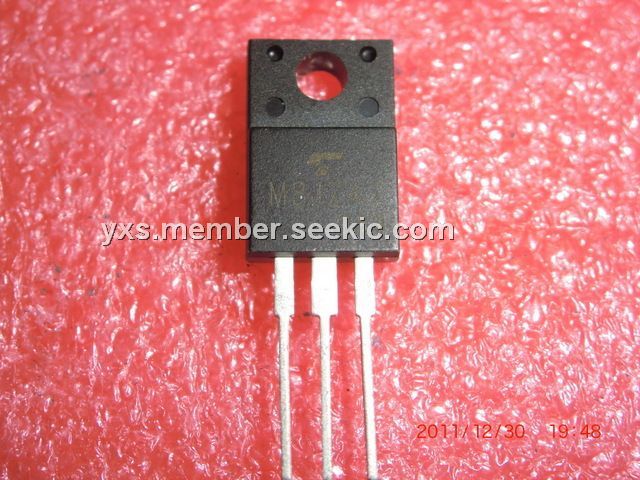

Product Summary

The M8JZ47 is a bi-directional triode thyristor. It is suitable for AC power control applications.

Parametrics

M8JZ47 absolute maximum ratings: (1)R.M.S On-State Current,IT (RMS): 8 A; (2)I2t, Limit Value I2t: 32 A2s; (3)Critical Rate of Rise of On-State Current, di/dt: 50 A/μs; (4)Peak Gate Power Dissipation, PGM: 5 W; (5)Average Gate Power Dissipation, PG (AV): 0.5 W; (6)Peak Gate Voltage, VGM: 10 V; (7)Peak Gate Current, IGM: 2 A; (8)Junction Temperature, Tj: -40~125℃; (9)Storage Temperature Range, Tstg: -40~125℃; (10)Isolation Voltage (AC, t = 1min.), VISOL: 1500 V.

Features

M8JZ47 features: (1)Repetitive Peak Off-State Voltage: VDRM = 400, 600V; (2)R.M.S ON-State Current: IT (RMS) = 8A; (3)High Commutating (dv / dt); (4)Isolation Voltage: VISOL = 1500V AC.

Diagrams

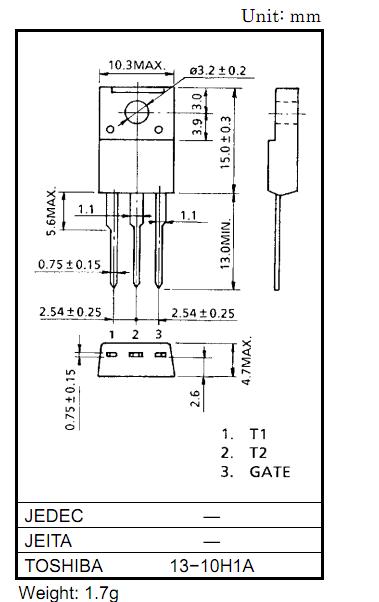

M8JZ47 dimensions
