Product Summary

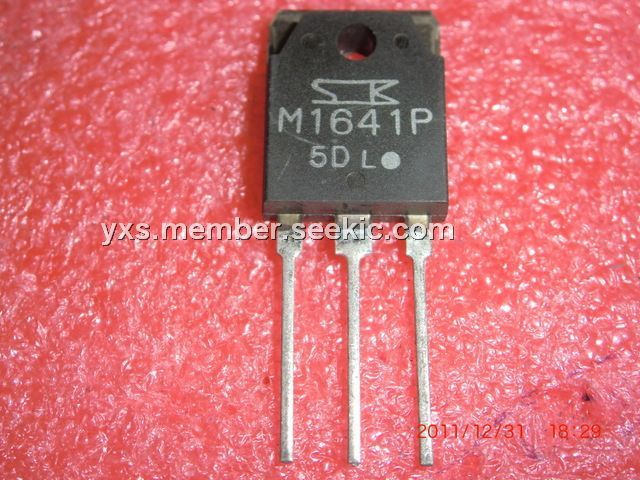

The M1641P is an IC.
Parametrics
M1641P absolute maximum ratings: (1)Repetitive peak off-state voltage, VDRM: 400V; (2)RMS on-state current, IT(RMS): 16A; (3)Surge on-state current, ITSM: 160A; (4)Peak gate voltage, VGM: 10V; (5)Peak gate current, IGM: 2A; (6)Peak gate power loss, PGM: 5W; (7)Average gate power loss, PG(AV): 0.5W; (8)Junction temperature, TJ: -40 to 125℃; (9)Storage temperature, Tstg: -40 to 125℃.
Features
M1641P features: (1)Repetitive peak off-state voltage: VDRM=400, 600V; (2)RMS on-state current: IT(RMS)=16A; (3)Gate trigger current: IGT=30mA max.

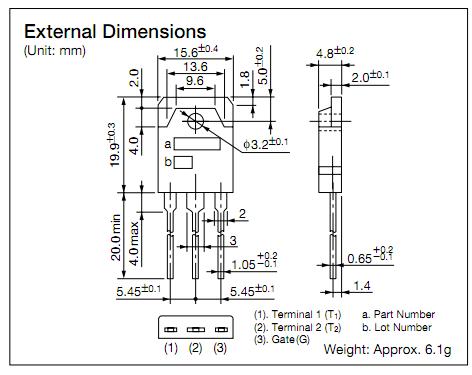

Diagrams
![]() |
