Product Summary

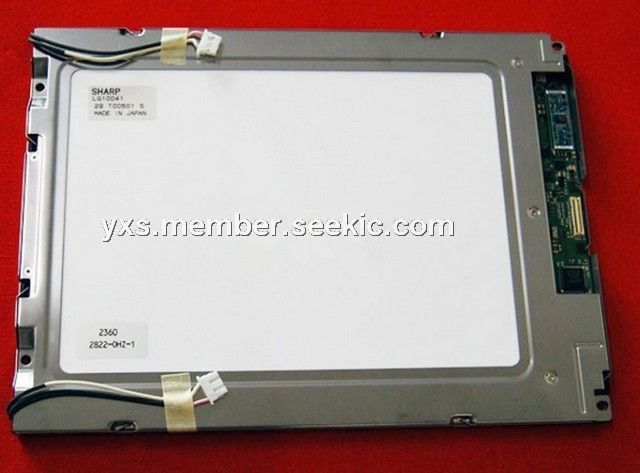

The LQ10D41 is a Color TFT-LCD Module.
Parametrics
LQ10D41 absolute maximum ratings: (1)Display size 26 [10.4] cm [ "]; (2)Dot format (H × V) 640 × RGB × 480 dot; (3)Dot pitch (H × V) 0.11 × 0.33 mm; (4)Active area (H × V) 211.2 × 158.4 mm; (5)Color 262 144; (6)Input signal 6-bit Digital RGB; (7)Viewing direction 6:00; (8)Backlight type 2CCFT(E); (9)Brightness 300 cd/m; (10)Contrast ratio 100 : 1; (11)Power consumption 7.4 W; (12)Outline dimensions (W × H × D) 265.0 × 195.0 × 11.0 mm; (13)Weight 635 g; (14)Operating temperature 0 to +55℃; (15)Storage temperature -25 to +70℃.
Features
LQ10D41 features: (1)26 cm [10.4"] VGA format; (2)Wide viewing angle (Horizontal: 120° Vertical: 90°); (3)High brightness (300 cd/m2).
Diagrams
 |
