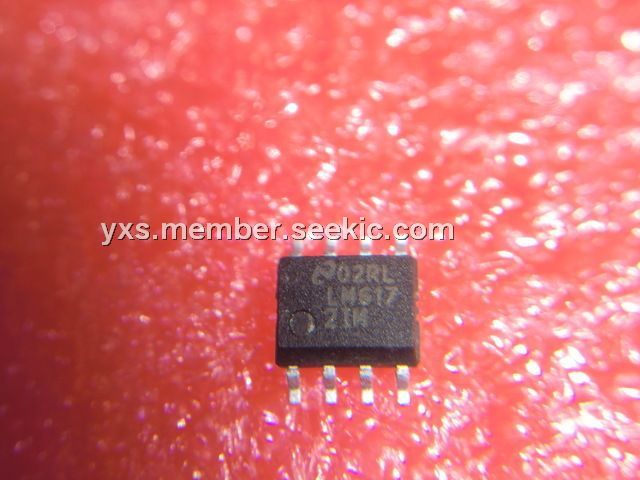

Product Summary

The LM6172IM is a dual high speed voltage feedback amplifier. It is unity-gain stable and provides excellent DC and AC performance. With 100 MHz unity-gain bandwidth, 3000V/μs slew rate and 50 mA of output current per channel, the LM6172IM offers high performance in dual amplifiers; yet it only consumes 2.3 mA of supply current each channel. The applications of the LM6172IM include Scanner I-to-V Converters, ADSL/HDSL Drivers, Multimedia Broadcast Systems, Video Amplifiers, NTSC, PAL and SECAM Systems, ADC/DAC Buffers, Pulse Amplifiers and Peak Detectors.

Parametrics

LM6172IM absolute maximum ratings: (1)ESD Tolerance: Human Body Model: 3 kV; (2)Machine Model: 300V; (3)Supply Voltage (V+ . V.): 36V; (4)Differential Input Voltage: ±10V; (5)Output Short Circuit to Ground: Continuous; (6)Storage Temp. Range: -65℃ to +150℃; (7)Maximum Junction Temperature: 150℃.

Features

LM6172IM features: (1)Easy to Use Voltage Feedback Topology; (2)High Slew Rate 3000V/μs; (3)Wide Unity-Gain Bandwidth 100 MHz; (4)Low Supply Current 2.3 mA/Channel; (5)High Output Current 50 mA/channel; (6)Specified for ±15V and ±5V Operation.

Diagrams

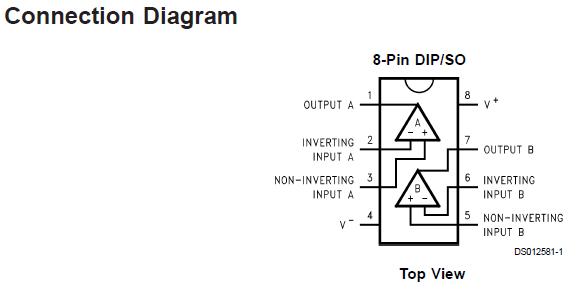

LM6172IM connection diagram
