Product Summary
The LM2698MM-ADJ is a general purpose PWM boost converter. The 1.9A, 18V, 0.2ohm internal switch enables the LM2698 to provide efficient power conversion to outputs ranging from 2.2V to 17V. The LM2698MM-ADJ can operate with input voltages as low as 2.2V and as high as 12V. Current-mode architecture provides superior line and load regulation and simple frequency compensation over the device’s 2.2V to 12V input voltage range. The LM2698MM-ADJ sets the standard in power density and is capable of supplying 12V at 400mA from a 5V input. The applicaitons of the LM2698MM-ADJ are 3.3V to 5V, 5V to 12V conversion, Distributed Power, Set-Top Boxes, DSL Modems, Diagnostic Medical Instrumentation, Boost Converters, Flyback Converters and SEPIC Converters.
Parametrics
LM2698MM-ADJ absolute maximum ratings: (1)VIN: -0.3V ≤ VIN ≤ 12V; (2)SW Voltage: -0.3V ≤ VSW ≤ 18V; (3)FB Voltage: -0.3V ≤ VFB ≤ 7V; (4)VC Voltage: 0.965 < VC < 1.565; (5)SHDN Voltage: -0.3V ≤ VSHDN ≤ 7V; (6)FSLCT: -0.3V ≤ VFSLCT ≤ 12V; (7)Maximum Junction Temperature: 150℃; (8)Lead Temperature: 300℃; (9)Vapor Phase (60 sec.): 215℃; (10)Infrared (15 sec.): 220℃.
Features
LM2698MM-ADJ features: (1)1.9A, 0.2Ω, internal switch (typical); (2)Operating voltage as low as 2.2V; (3)600kHz/1.25MHz adjustable frequency operation; (4)Switchers Made Simple software; (5)8-Lead MSOP package.

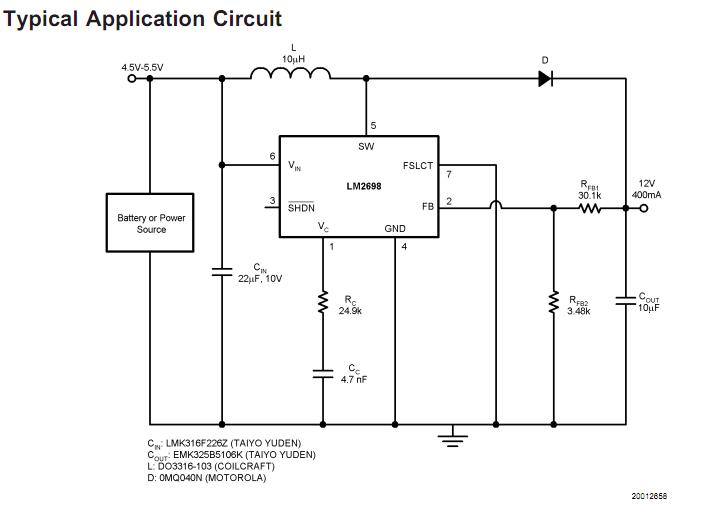

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

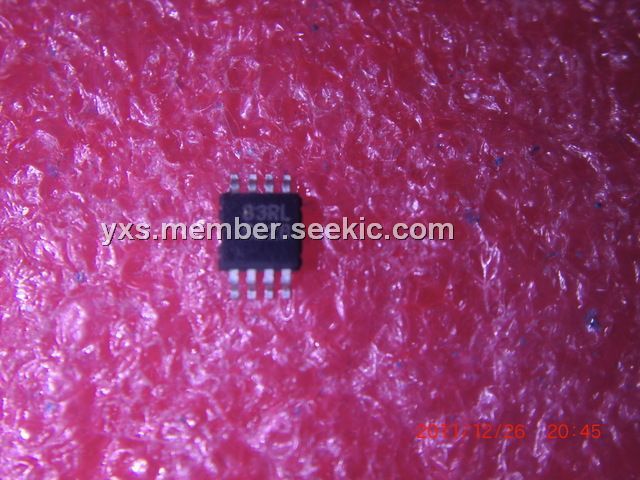

 LM2698MM-ADJ |
National Semiconductor (TI) |
Switching Converters, Regulators & Controllers |
Data Sheet |
|
|
||||||||||||
 |
LM2698MM-ADJ/NOPB |
National Semiconductor (TI) |
Switching Converters, Regulators & Controllers 1.35A BOOST REG |
Data Sheet |
|
|
||||||||||||
