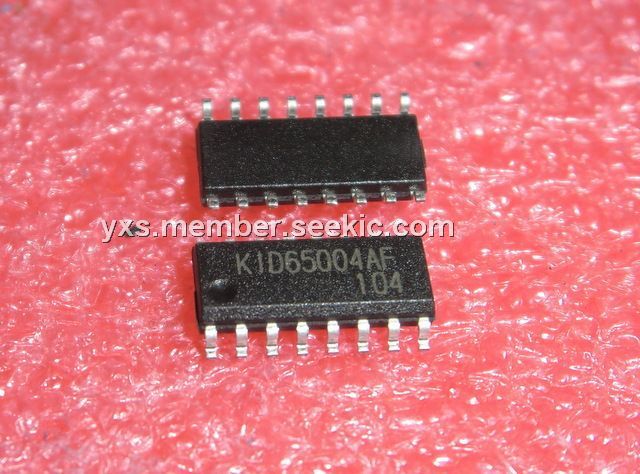

Product Summary
The KID65004AF is a bipolar linear integrated circuit. It is a 7 circuit darlington transistor array. The KID65004AF is a high voltage, high current darlington transistor array comprised of seven NPN darlington pairs. All units feature internal clamn diodes for switching inductive loads.
Parametrics
KID65004AF absolute maximum ratings: (1)Output suataining voltage, VCE: 50V; (2)Output current, IOUT: 500mA; (3)Input voltage, VIN: -0.5 to +30V; (4)Input current, IIN: 25mA; (5)Reverse voltage, VR: 50V; (6)Forward current, IF: 500mA; (7)Operating temperature, ToprL -40 to 85℃; (8)Storage temperature, Tstg: -55 to 150℃.
Features
KID65004AF features: (1)Output current: 500mA; (2)High sastaining voltage outputs: 50V; (3)Output clamp diodes; (4)Inputs compatible with various types of logic; (5)PKG type.

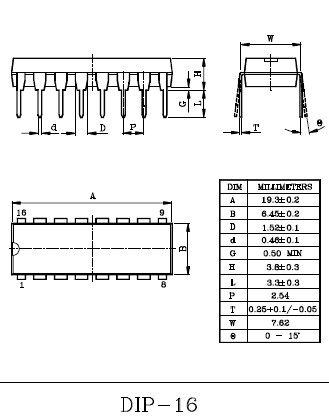

Diagrams
![]() |
