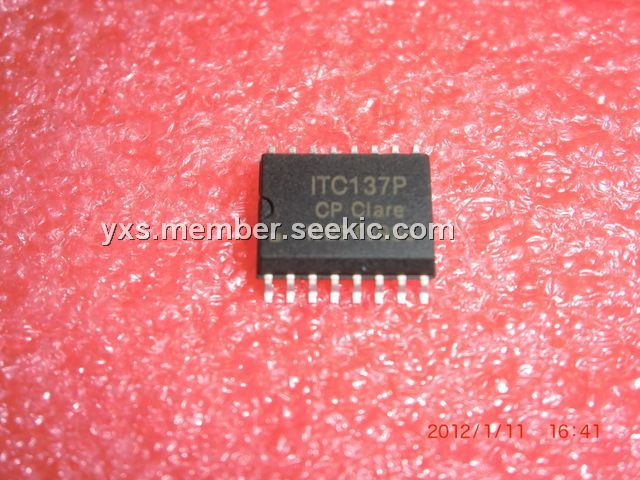

Product Summary
The ITC137P is an Integrated Telecom Circuit. It combines a 1-Form-A solid state relay, bridge rectifier, Darlington transistor, optocoupler and zener diodes into one 16 pin SOIC package, consolidating designs and reducing component count in telecom applications. The ITC137P’s optocoupler provides for ful wave detection of the ring signal.
Parametrics
ITC137P absolute maximum ratings: (1)Total Package Dissipation: 11 W; (2)Input to Output: 3750VRMS; (3)Operational Temperature: -40 to +85℃; (4)Storage Temperature: -40 to +125℃; (5)Soldering Temperature: +220℃.
Features
ITC137P features: (1)Small 16 Pin SOIC Package (PCMCIA Compatible); (2)Board Space and Cost Savings; (3)2mW Hookswitch Drive Power (Logic Compatible); (4)No Moving Parts; (5)3750VRMS Input/Output Isolation; (6)FCC Compatible Part 68; (7)Full-Wave Bridge Rectifier; (8)Darlington Transistor for Electronic Inductor Dry Circuits; (9)Full Wave Current Detector for Ring Signal or Loop Current Detect; (10)JEDEC Standard Pin Out; (11)Includes Zener Diodes.

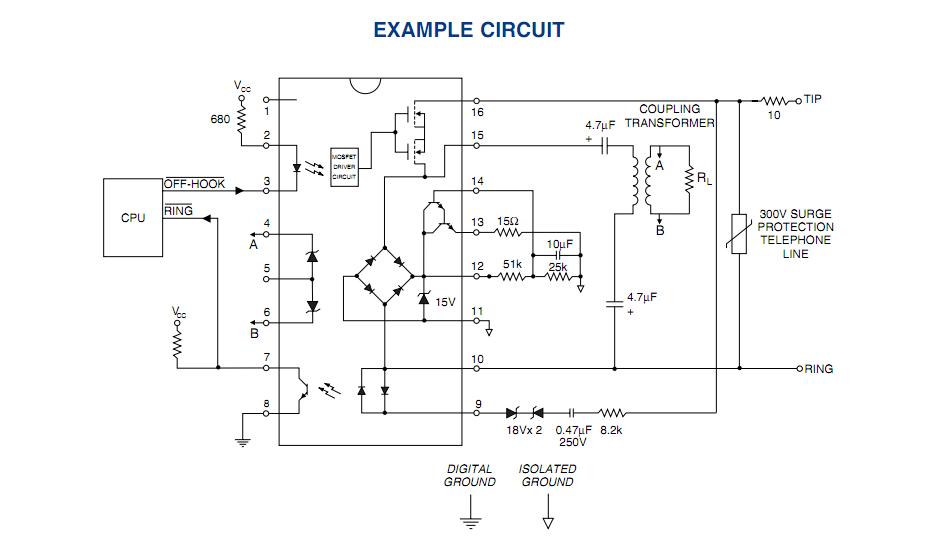

Diagrams
