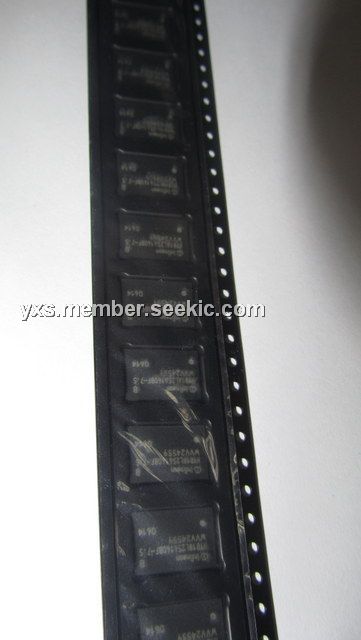

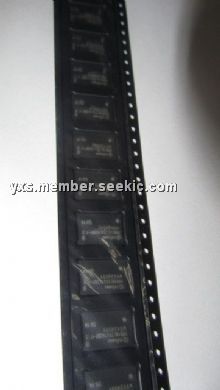

HYB18L256169BF-7.5

dynamic random-access memory, 54-ball PG-VFBGA, -0.3 to 2.7 V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $5.90~8.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $5.90~8.50

PartNumber:: HYB18L256169BF-7.5

Brand:: Qimonda AG - Qimonda | Pack: BGA | D/C: 07+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Jack's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-21

From Other Seller

Part Number:HYB18L256169BF-7.5
US $5.90 - 8.50
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The HYB18L256169BF-7.5 is a high-speed CMOS, dynamic random-access memory containing 268,435,456 bits. It is internally configured as a quad-bank DRAM. The HYB18L256169BF-7.5 achieves high speed data transfer rates by employing a chip architecture that prefetches multiple bits and then synchronizes the output data to the system clock. Read and write accesses are burst-oriented; accesses start at a selected location and continue for a programmed number of locations (1, 2, 4, 8 or full page) in a programmed sequence. The HYB18L256169BF-7.5 operation is fully synchronous: all inputs are registered at the positive edge of CLK.

Parametrics

HYB18L256169BF-7.5 absolute maximum ratings: (1)Power Supply Voltage VDD: -0.3 to 2.7 V; (2)Power Supply Voltage for Output Buffer VDDQ: -0.3 to 2.7 V; (3)Input Voltage VIN: -0.3 to VDDQ + 0.3 V; (4)Output Voltage VOUT: -0.3 to VDDQ + 0.3 V; (5)Operation Case Temperature Commercial TC: 0 to + 70 ℃; (6)Storage Temperature TSTG: -55 to +150 ℃; (7)Power Dissipation PD: 0.7 W; (8)Short Circuit Output Current IOUT: 50 mA.

Features

HYB18L256169BF-7.5 features: (1)4 banks × 4 Mbit × 16 organization; (2)Fully synchronous to positive clock edge; (3)Four internal banks for concurrent operation; (4)Programmable CAS latency: 2, 3; (5)Programmable burst length: 1, 2, 4, 8 or full page; (6)Programmable wrap sequence: sequential or interleaved; (7)Programmable drive strength; (8)Auto refresh and self refresh modes; (9)8192 refresh cycles / 64 ms; (10)Auto precharge; (11)Commercial (0℃ to +70℃) and Extended (-25℃ to +85℃) operating temperature range; (12)54-ball PG-VFBGA package (11.0 × 8.0 × 1.0 mm); (13)RoHS Compliant Product.
