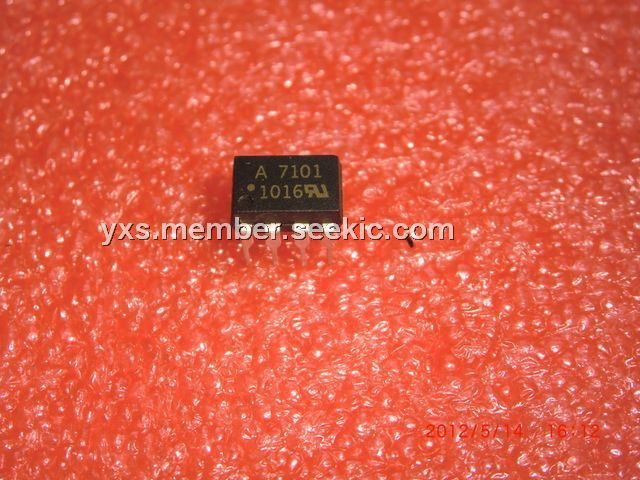

HCPL7101

optocoupler, 0.0 to 5.5 V, 25 mA, HCPL7101, AVAGO

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.90~3.20 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.90~3.20

PartNumber:: HCPL7101

Brand:: AVAGO TECHNOLOGIES LIMITED - Avago | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Jack's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-09-05

From Other Seller

Part Number:HCPL7101
US $1.90 - 3.20
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
AT45DB161D-SU

US $1.50 - 3.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The HCPL7101 is an optocoupler. It combines the latest CMOS IC technology, a new high-speed high-efficiency AlGaAs LED, and an optimized light coupling system to achieve outstanding performance with very low power consumption. The HCPL7101 requires only two bypass capacitors for complete CMOS/TTL compatibility. The applications of the HCPL7101 are Multiplexed Data Transmission, Computer-Peripheral Interface, Microprocessor System Interface, Digital Isolation for A/D, D/A Conversion, Instrument Input/Output Isolation, Motor Control and Power Inverter.

Parametrics

HCPL7101 absolute maximum ratings: (1)Storage Temperature TS: -55 to 125℃; (2)Ambient Operating Temperature TA: -40 to 85℃; (3)Supply Voltages V DD1,2: 0.0 to 5.5 V; (4)Input Voltage VI: -0.5 to VDD1 + 0.5 V; (5)Output Voltage VO: -0.5 to VDD2 + 0.5 V; (6)Output Enable Voltage V OE: -0.5 to VDD2 + 0.5 V; (7)Average Output Current IO: 25 mA; (8)Package Power Dissipation PPD: 220 mW; (9)Lead Solder Temperature TLS: 260℃.

Features

HCPL7101 features: (1)1 μm CMOS IC Technology; (2)Compatibility with All +5 V CMOS and TTL Logic Families; (3)No External Components Required for Logic Interface; (4)High Speed: 15 MBd Guaranteed; (5)Low Power Consumption; (6)Safety Approvals UL 1577 (3750 Vac/1 Min) VDE 0884 (VIORM = 848 V peak) CSA; (7)3-State Output; (8)3750 Vac/1 Minute Dielectric Withstand; (9)High Common Mode Transient Immunity.
