Product Summary
The GAL16V8D is a High Performance E2CMOS PLD. It combines a high performance CMOS process with Electrically Erasable (E2) floating gate technology to provide the highest speed performance available in the PLD market. The GAL16V8D is capable of emulating any of these PAL architectures with full function/fuse map/parametric compatibility. The applications of the GAL16V8D are DMA Control, State Machine Control, High Speed Graphics Processing, Standard Logic Speed Upgrade.
Parametrics
GAL16V8D absolute maximum ratings: (1)Supply voltage VCC:–0.5 to +7V; (2)Input voltage applied:–2.5 to VCC +1.0V; (3)Off-state output voltage applied:–2.5 to VCC +1.0V; (4)Storage Temperature:–65℃ to 150℃; (5)Ambient Temperature with Power Applied:–55℃ to 125℃.
Features
GAL16V8D features: (1)3.5 ns Maximum Propagation Delay; (2)Fmax = 250 MHz; (3)3.0 ns Maximum from Clock Input to Data Output; (4)UltraMOS Advanced CMOS Technology; (5)Reconfigurable Logic; (6)Reprogrammable Cells; (7)100% Tested/100% Yields; (8)High Speed Electrical Erasure (<100ms); (9)20 Year Data Retention; (10)Maximum Flexibility for Complex Logic Designs; (11)Programmable Output Polarity; (12)Also Emulates 20-pin PAL Devices with Full Function/Fuse Map/Parametric Compatibility; (13)preload and power-on reset of all registers: 100% Functional Testability; (14)electronic signature for identification; (15)lead-free package options.

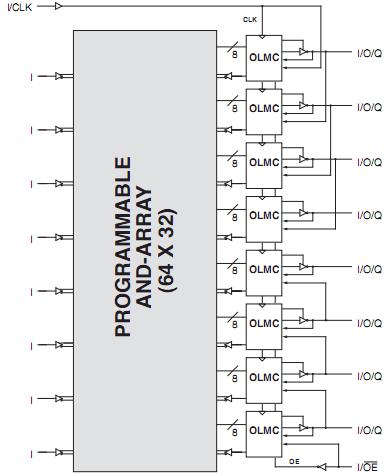

Diagrams
