Product Summary

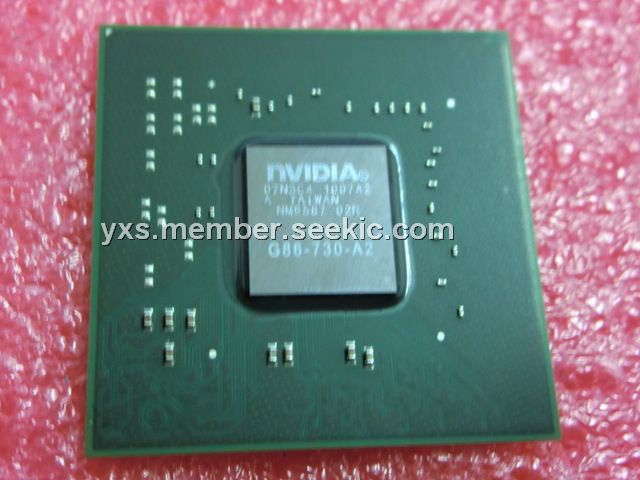

The G86-730-A2 is a DirectX 10 capable successor of the GeForce Go 7600 / 7700 for laptops and technically a higher clocked 8400M GT. The performance is slightly above the 7600 / 7700 and therefore it can represent current games fluently. For DirectX 10 effects, the power of the card is not sufficient. Current demanding games like Crysis are only playable with the lowest settings.
Parametrics
G86-730-A2 absolute maximum ratings: (1)Codename: G84M; (2)Pipelines: 16 - unified; (3)Core Speed: 600 MHz; (4)Shader Speed: 1200 MHz; (5)Memory Speed: 700 MHz; (6)Memory Bus Width: 128 Bit; (7)Memory Type: GDDR3, GDDR2; (8)Max. Amount of Memory: 512 MB; (9)Shared Memory: no; (10)DirectX: DirectX 10, Shader 4.0; (11)Current Consumption: 20 Watt; (12)Transistors: 289 Million; (13)technology: 80 nm.
Features
G86-730-A2 features: (1)Shader Clock Speed 1200 MHz; (2)PureVideo technology ( H.264 , VC -1, MPEG2 , WMV9 decoding acceleration ) ; (3)HDCP - capable; (4)PowerMizer 7.0 energy management (dynamic switching between performance and energy saving); (5)HDR (High Dynamic - Range Lighting) ; (6)designed for Windows Vista,16x full screen AA , 16× AF independent angle, 128 - bit HDR illumination with AA, dual - link DVI outputs for TFT resolutions up to 2560x1600, PCI - E 16x , OpenGL 2.1; (7)Gigathread Technology .
 |
