Product Summary

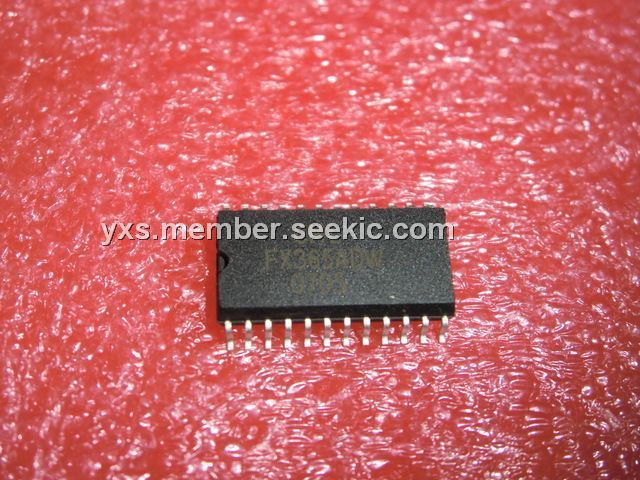

The FX365ADW is a CMOS LSI device intended for use as a CTCSS encoder/decoder in radio communications systems. Designed specifically for microprocessor controlled multichannel equipment, the FX365ADW incorporates a number of advanced features which improve performance and facilitate system design.
Parametrics
FX365ADW absolute maximum ratings: (1)supply votlage: -0.3 to 7.0V; (2)input voltage at any pin: -0.3 to VDD+0.3V; (3)output sink/source curent: 20mA; (4)operating tempeature range: -30 to 85℃; (5)storage temperature range: -55 to 125℃; (6)maximum device dissipation: 800mW.
Features
FX365ADW features: (1)CTCSS encoder/decoder; (2)serial/parallel uP interface; (3)38 programmable tones; (4)separate Rx/Tx audio paths; (5)HP filter for rejection of CTCSS tone and proefitering of Tx audio; (6)low falsing with noise inputs; (7)Tx phase reversal facility; (8)no tone facility; (9)HF filters on inputs; (10)on-chip analogue switching; (11)low power 5V CMOS; (12)xtal controlled tones; (13)choice of DIL or surface mount package styles.
Diagrams
 |
 FX365C |
Other |
|
Data Sheet |
Negotiable |
|
||||
