DS2438Z+T

Smart Battery Monitor, 8-SOIC, 64-bit, -0.3V to + 12V, DS2438Z+T

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.23~2.87 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.23~2.87

PartNumber:: DS2438Z+T

Brand:: Maxim Integrated Products - Maxim | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Jack's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-28

From Other Seller

Part Number:DS2438Z+T
US $2.23 - 2.87
PDH3012

US $12.00 - 18.00 / Piece
(0) Remove
OT31

US $3.50 - 5.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

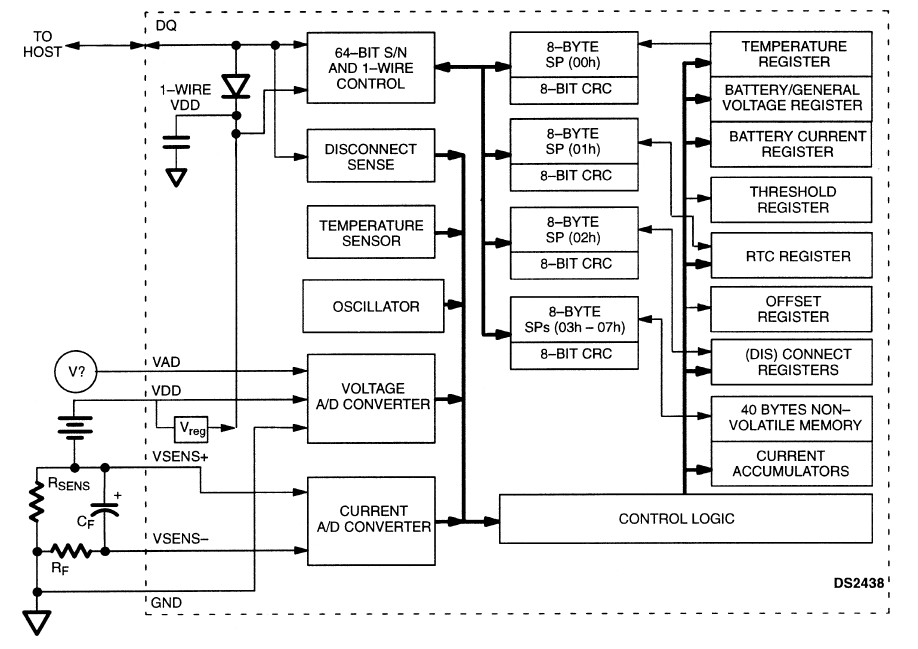

The DS2438Z+T is a Smart Battery Monitor. It provides several functions that are desirable to carry in a battery pack. Information is sent to/from the DS2438Z+T over a 1-Wire interface, so that only one wire (and ground) needs to be connected from a central microprocessor to a DS2438Z+T. This means that battery packs need only have three output connectors: battery power, ground, and the 1-Wire interface. Applications include portable computers, portable/cellular phones, consumer electronics, and handheld instrumentation.

Parametrics

DS2438Z+T absolute maximum ratings: (1)Voltage on VDD and VAD, Relative to Ground: -0.3V to + 12V; (2)Voltage on VSENS+, VSENS-, Relative to Ground: <±300 mV; (3)Voltage on Any Pin Relative to Ground: -0.3V to + 7.0V; (4)Operating Temperature: -40℃ to +85℃; (5)Storage Temperature: -55℃ to +125℃.

Features

DS2438Z+T features: (1)Unique 1-Wire interface requires only one port pin for communication; (2)Provides unique 64-bit serial number to battery packs; (3)Eliminates thermistors by sensing battery temperature on-chip; (4)On-board A/D converter allows monitoring of battery voltage for end-of-charge and end-of-discharge determination; (5)On-board integrated current accumulator facilitates fuel gauging; (6)Elapsed time meter in binary format; (7)40-byte nonvolatile user memory available for storage of battery-specific data; (8)Operating range -40℃ to +85℃.
