Product Summary
The BA5954FP is an actuator driver IC for CD-ROM and DVD players. This actuator driver adopts current feedback system. This IC BA5954FP incorporates 2 channel actuator drivers and 2 channel motor drivers. Current phase lag influenced load inductance is little, because this type is current feedback. The applications of the BA5954FP are CD/CD-ROM.
Parametrics
BA5954FP absolute maximum ratings: (1)Supply voltage, VCC, PVCC1/2: 18V; (2)Power dissipation, Pd: 1.7W; (3)Operating temperature range, Topr: -35 to 85℃; (4)Storage temperature range, Tstg: -55 to 150℃.
Features
BA5954FP features: (1)Wide dynamic range, VOM4.0V(typ.) at PreVcc=12V,PVcc=5V,RL=8W; (2)Level shift circuit built in; (3)Thermal-shut-down circuit built in; (4)Stand-by mode built in.

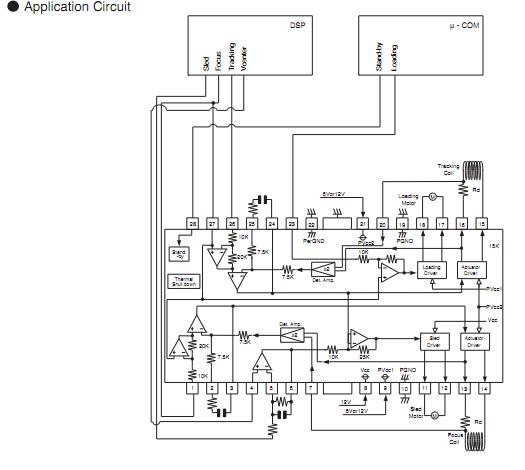

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BA5954FP |
Other |
|
Data Sheet |
Negotiable |
|
||||||
|
BA5954FP-E2 |
ROHM Semiconductor |
Motor / Motion / Ignition Controllers & Drivers CD/CD-ROM DRIVER 2CH |
Data Sheet |
|
|
||||||
