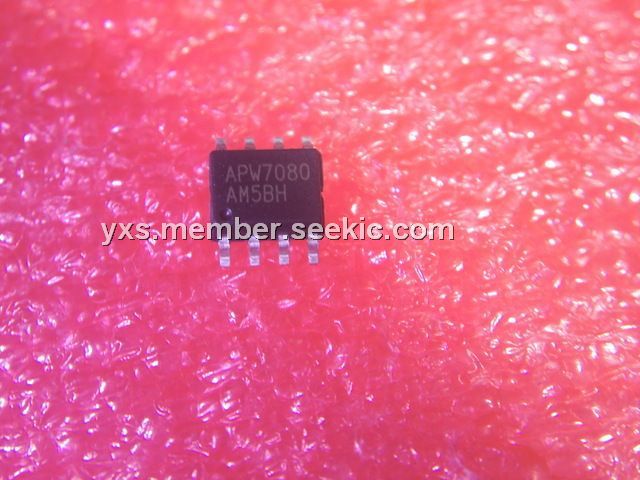

APW7080

P-channel MOSFET, SOP8, -0.3 to 30V, APW7080, 4A

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.53~0.85 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.53~0.85

PartNumber:: APW7080

Brand:: Anpec Electronics Coropration - ANPEC | Pack: SOP | D/C: 96+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Jack's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-20

From Other Seller

Part Number:APW7080
US $0.53 - 0.85
LM64P101

US $240.00 - 300.00 / Piece
(0) Remove
IRF3205

US $0.80 - 2.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The APW7080 is a 4A, asynchronous, step-down converter with integrated 80mW P-channel MOSFET. The device, with current-mode control scheme, can convert 4.5~26V input voltage to the output voltage adjustable from 0.8 to 90% VIN to provide excellent output voltage regulation. The APW7080 regulates the output voltage in automatic PSM/PWM mode operation, depending on the output current, for high efficiency operation over light to full load current. The applications of APW7080 include: (1)LCD Monitor / TV; (2)Set-Top Box; (3)Portable DVD; (4)Wireless LAN; (5)ADSL, Switch HUB; (6)Notebook Computer; (7)Step-down Converters Requiring High Efficiency and 4A Output Current.

Parametrics

APW7080 absolute maxing ratings: (1)VIN VIN Supply Voltage (VIN to GND): -0.3 ~ 30V; (2)VLX LX to GND Voltage > 100ns: -2 ~ VIN+0.3V; < 100ns: -5 ~ VIN+6V; (3)VCC VCC Supply Voltage (VCC to GND): VIN > 6.2V: -0.3 ~ 6.5V; VIN ≤ 6.2V: < VIN+0.3V; (4)VUGND_GND UGND to GND Voltage: -0.3 ~ VIN+0.3V; (5)VVIN_UGND VIN to UGND Voltage: -0.3 ~ 6.5V; EN to GND Voltage: -0.3 ~ 20V; FB, COMP to GND Voltage: -0.3 ~ VCC+0.3V.

Features

APW7080 features: (1)Wide Input Voltage from 4.5V to 26V; (2)Output Current up to 4A; (3)Adjustable Output Voltage from 0.8V to 90%VIN: 0.8V Reference Voltage; ±2.5% System Accuracy; (4)80mW Integrated P-Channel Power MOSFET; (5)High Efficiency up to 91%: Pulse-SkippingMode (PSM)/PWMModeOperation; (6)Current-Mode Operation: Stable with Ceramic Output Capacitors; Fast Transient Response; (7)Power-On-Reset Monitoring; (8)Fixed 380kHz Switching Frequency in PWMMode; (9)Built-in Digital Soft-Start; (10)Output Current-Limit Protection with Frequency Foldback; (11)70%Undervoltage Protection; (12)Over-Temperature Protection; (13)<5mA Quiescent Current during Shutdown; (14)Thermal-Enhanced SOP-8P Package; (15)Lead Free and Green Devices Available(RoHS Compliant).
