Product Summary

The AD8512ARZ is a precision, very low noise, low input bias current, wide bandwidth jfet operational amplifier. The AD8512ARZ is a single-, dual-, and quadprecision JFET amplifier that features low offset voltage, input bias current, input voltage noise, and input current noise. The combination of low offsets, low noise, and very low input bias currents makes these amplifiers especially suitable for high impedance sensor amplification and precise current measurements using shunts. The combination of dc precision, low noise, and fast settling time results of the AD8512ARZ in superior accuracy in medical instruments, electronic measurement, and automated test equipment. Applications of the AD8512ARZ are: Instrumentation, Multipole filters, Precision current measurement, Photodiode amplifiers, Sensors, Audio.

Parametrics

AD8512ARZ absolute maximum ratings: (1)Supply Voltage: ±18 V; (2)Input Voltage: ±VS; (3)Output Short-Circuit Duration to GND: Observe Derating Curves; (4)Storage Temperature Range R, RM Packages: -65℃ to +150℃; (5)Operating Temperature Range: -40℃ to +125℃; (6)Junction Temperature Range R, RM Packages: -65℃ to +150℃; (7)Lead Temperature Range (Soldering, 10 sec): 300℃; (8)Electrostatic Discharge (HBM): 2000 V.

Features

AD8512ARZ features: (1)Fast settling time: 500 ns to 0.1%; (2)Low offset voltage: 400 μV max; (3)Low TCVOS: 1 μV/℃ typ; (4)Low input bias current: 25 pA typ; (5)Dual-supply operation: ±5 V to ±15 V; (6)Low noise: 8 nV/√Hz; (7)Low distortion: 0.0005%; (8)No phase reversal; (9)Unity gain stable.

Diagrams

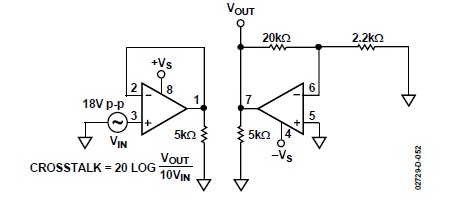

AD8512ARZ test circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

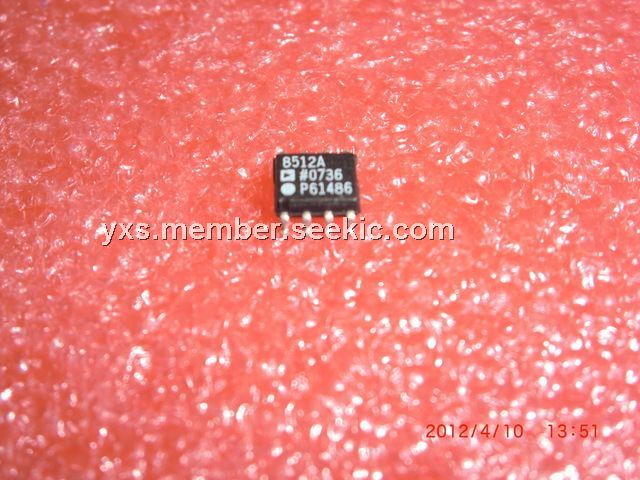

AD8512ARZ
AD8512ARZ


IC OPAMP JFET 8MHZ DUAL LN 8SOIC

Data Sheet

0-1: $2.30
1-10: $2.05
10-100: $1.68
100-250: $1.52
250-500: $1.36
500-1000: $1.15
1000-2500: $1.09
