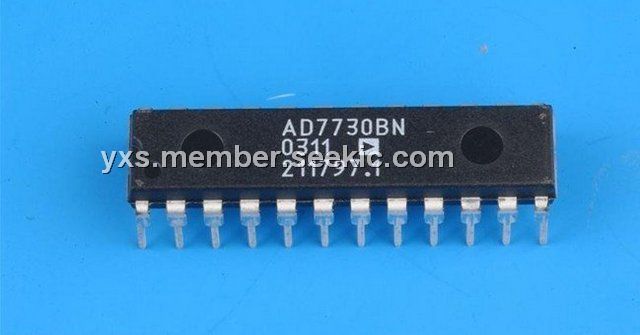

Product Summary
The AD7730BN is a converter. The AD7730BNZ is a complete analog front end for weigh-scale and pressure measurement applications. The AD7730BN accepts lowlevel signals directly from a transducer and outputs a serial digital word. The input signal of the AD7730BN is applied to a proprietary programmable gain front end based around an analog modulator.The modulator output is processed by a low pass programmable digital filter, allowing adjustment of filter cutoff, output rate and settling time.
Parametrics
AD7730BN absolute maximum ratings: (1)DVDD to DGND: –0.3 V to +7 V; (2)AGND to DGND: –5 V to +0.3 V; (3)AVDD to DVDD: –2 V to +5 V; (4)Analog Input Voltage to AGND: –0.3 V to AVDD + 0.3 V; (5)Reference Input Voltage to AGND: –0.3 V to AVDD + 0.3 V; (6)AIN/REF IN Current (Indefinite): 30 mA; (7)Digital Input Voltage to DGND: –0.3 V to DVDD + 0.3 V; (8)Digital Output Voltage to DGND: –0.3 V to DVDD + 0.3 V; (9)Output Voltage (ACX, ACX, D0, D1) to DGND : –0.3 V to AVDD + 0.3 V; (10)Operating Temperature Range Industrial (B Version): –40℃ to +85℃; (11)Storage Temperature Range: –65℃ to +150℃; (12)Temperature: +150℃; (13)Junction Temperature: +150℃.
Features
AD7730BN features: (1)Resolution of 230,000 Counts (Peak-to-Peak); (2)Offset Drift: 5 nV/8C; (3)Gain Drift: 2 ppm/8C; (4)Line Frequency Rejection: >150 dB; (5)Buffered Differential Inputs; (6)Programmable Filter Cutoffs; (7)Specified for Drift Over Time; (8)Operates with Reference Voltages of 1 V to 5 V.

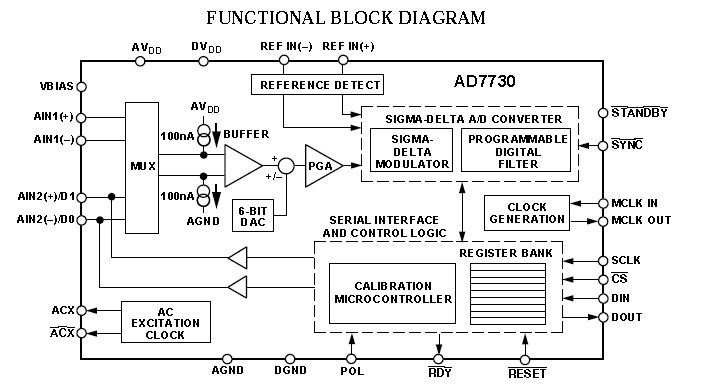

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD7730BN |
|
IC ADC TRANSDUCER BRIDGE 24-DIP |
Data Sheet |
Negotiable |
|
||||||||||||||||
|
AD7730BNZ |
|
IC ADC TRANSDUCER BRIDGE 24-DIP |
Data Sheet |
|
|
||||||||||||||||
