Product Summary
The 31DF6 is an Ultrafast Plastic Rectifier.
Parametrics
31DF6 absolute maximum ratings: (1)Repetitive Peak Reverse Voltage, VRRM: 600V; (2)Average Rectified Output Current, IO: 3.0 A; (3)RMS Forward Current, IF(RMS): 4.71 A; (4)Surge Forward Current, IFSM: 45 A; (5)Operating JunctionTemperature Range, Tjw: - 40 to + 150℃; (6)Storage Temperature Range, Tstg: - 40 to + 150℃.
Features
31DF6 features: (1)Ultra – Fast Recovery; (2)Low Forward Voltage Drop; (3)Low Power Loss, High Efficiency; (4)High Surge Capability; (5)200 Volts thru 600 Volts Types Available.

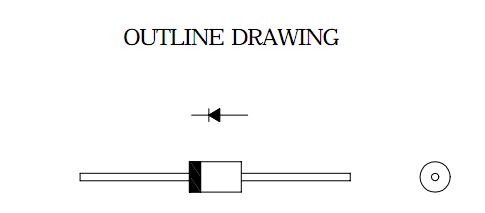

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 31DF6 |
Taiwan Semiconductor |
Rectifiers 3Amp,600V Ultra Fast Recovery Rect |
Data Sheet |
|
|
||||||||
|
31DF6Z |
Other |
|
Data Sheet |
Negotiable |
|
||||||||
