Product Summary
The 2SK3748 is an N-Channel Silicon MOSFET. It is suitable for High-Voltage, High-Speed Switching Applications.
Parametrics
2SK3748 absolute maximum ratings: (1)Drain-to-Source Voltage VDSS: 1500 V; (2)Gate-to-Source Voltage VGSS: ±20 V; (3)Drain Current (DC) ID: 4A; (4)Drain Current (Pulse) IDP: 8 A; (5)Allowable Power Dissipation PD: 3.0 W; (6)Channel Temperature Tch: 150℃; (7)Storage Temperature Tstg: -55 to +150℃; (8)Avalanche Energy (Single Pulse) EAS: 170 mJ; (9)Avalanche Current IAV: 4A.
Features
2SK3748 features: (1)Low ON-resistance, low input capacitance, ultrahigh-speed switching; (2)High reliability (Adoption of HVP process); (3)Attachment workability is good by Mica-less package; (4)Avalanche resistance guarantee.

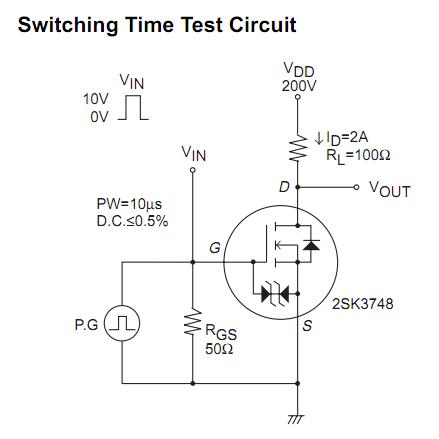

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |

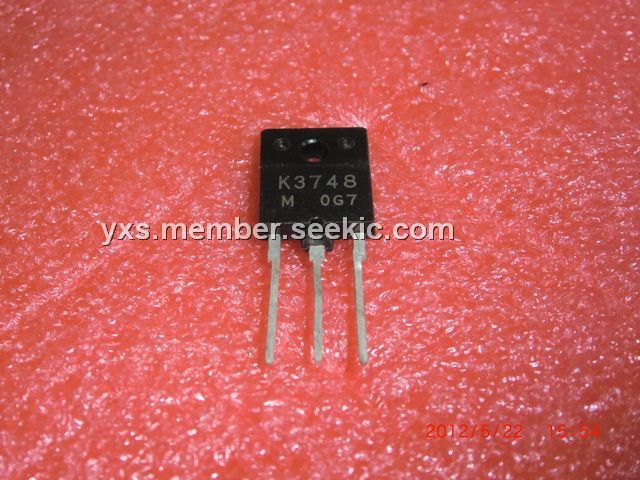

![]() 2SK3748 |
![]() ON Semiconductor |
![]() MOSFET HIGH-VOLTAGE POWER MOSFET |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
