Product Summary

The K8AC-H12CC-FLK is a digital heater element burnout detector.

Parametrics

K8AC-H12CC-FLK absolute maximum ratings: (1)Power supply voltage 100 to 240 VAC (50/60 Hz); (2)Operating voltage range 85% to 110% min. of the rated power supply voltage (85 to 264 V); (3)Power consumption: 35 VA max. (at max. load); (4)Applicable circuits Single-phase or three-phase (with same model); (5)Applicable control methods Contactor ON/OFF control (e.g., temperature controller with relay output); (6)Ambient operating temperature: -10 to +55°C (with no icing or condensation); (7)Ambient operating humidity: 25% to 85% (with no condensation); (8)Storage temperature -25 to +65°C (with no icing or condensation).

Features

K8AC-H12CC-FLK features: (1)Compatible with contactor, SSR, cyclic control, and phase control methods; (2)Compatible with a wide range of heater capacities, from 0.200 to 200.0 A AC (range covered by 3 models); (3)Voltage fluctuation compensation function enables accurate heater burnout detection, because power supply voltage fluctuations resulting in heater current fluctuation will not cause faulty outputs; (4)Detects burnouts for even one heater when using multiple heaters; (5)If the gate function is disabled, the gate input can be used as an undercurrent/overcurrent relay or for motor or lamp loads (2; (6)circuits); (7)CE Marking; (8)Contributes to preventative maintenance for heater burnout.

Diagrams

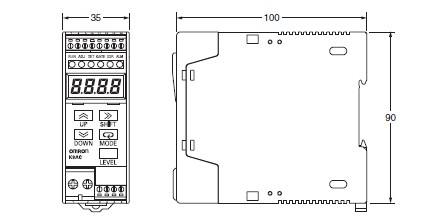

K8AC-H12CC-FLK dimension figure

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
K8AC-H12CC-FLK
K8AC-H12CC-FLK
Omron Industrial
General Purpose / Industrial Relays Detector
Data Sheet
0-1: $296.88
1-5: $277.35
5-10: $268.56
10-20: $263.68
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
K8AC-CT200
K8AC-CT200
Omron Industrial
General Purpose / Industrial Relays Current Transformer
Data Sheet
0-1: $43.09
1-10: $39.50
10-25: $36.46
25-50: $33.86
K8AC-CT200L
K8AC-CT200L
Omron Industrial
General Purpose / Industrial Relays 20-200A Current Transformer
Data Sheet
0-1: $51.55
1-2: $50.88
2-5: $47.53
5-10: $45.19
K8AC-CT20L
K8AC-CT20L
Omron Industrial
General Purpose / Industrial Relays .20-22A Current Tran sformer
Data Sheet
0-1: $43.79
1-10: $40.91
10-25: $39.61
25-50: $38.89
K8AC-CT20S
K8AC-CT20S
Omron Industrial
General Purpose / Industrial Relays .20-22A Current Tran sformer
Data Sheet
0-1: $32.75
1-10: $30.02
10-25: $27.71
25-50: $25.73
K8AC-H12CC-FLK
K8AC-H12CC-FLK
Omron Industrial
General Purpose / Industrial Relays Detector
Data Sheet
0-1: $296.88
1-5: $277.35
5-10: $268.56
10-20: $263.68
K8AC-H12PC-FLK
K8AC-H12PC-FLK
Omron Industrial
General Purpose / Industrial Relays Motor Burnout D etector
Data Sheet
0-1: $446.42
1-5: $409.22
5-10: $377.74
10-20: $350.76
