Product Summary

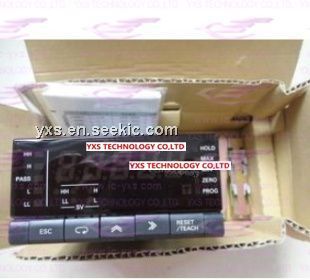

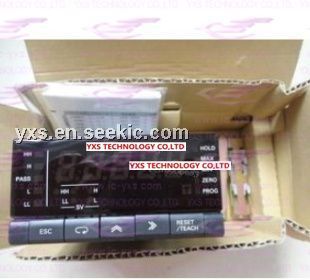

The K3NX-AA1A-C1 is an ideal interface for high-speed up/down counting and serial communications.

Parametrics

K3NX-AA1A-C1 absolute maximum ratings: (1)Supply voltage: 100 to 240 VAC (50/60 Hz); 12 to 24 VDC; (2)Operating voltage range: 85% to 110% of supply voltage; (3)Power consumption (see note)15 VA max. (max. AC load with all indicators lit): 10 W max. (max. DC load with all indicators lit); (4)Sensor power supply: 80 mA at 12 VDC±10%; (5)Ambient temperature Operating: -10°C to 55°C (with no icing), Storage: -20°C to 65°C (with no icing).

Features

K3NX-AA1A-C1 features: (1)50-kHz input range for high-speed signal processing; (2)A wide selection of outputs: relay, transistor, BCD, linear, or communications; (3)Prescale function available, which displays in units of actual physical parameters (length, volume, etc.); (4)Built-in sensor power supply (12 VDC, 80 mA); (5)Banks with four set values and four prescale values; (6)Five-stage comparative outputs available; (7)Compact 1/8 DIN size; (8)Conforms to EMC standards, EN61010-1 (IEC1010-1); (9)UL/CSA approved.

Diagrams

K3NX-AA1A-C1 pin connection
