Product Summary

The E5CK-RR1 is an Advanced, Compact Digital Temperature Controller.

Parametrics

E5CK-RR1 absolute maximum ratings: (1)Supply voltage: 100 to 240 VAC, 50/60 Hz; (2)Power consumption: 15 VA; (3)Operating voltage range: 85% to 110% of rated supply voltage; (4)Current input: 4 to 20 mA, 0 to 20 mA; (5)Voltage input: 1 to 5 V, 0 to 5 V, 1 to 10 V; (6)Input impedance Current input: 150 Ω; (7)Input impedance Voltage input: 1 MΩ min.; (8)Auxiliary output: SPST-NO, 1 A at 250 VAC.

Features

E5CK-RR1 features: (1)IP66/NEMA4 (indoor use) front face; (2)Modular structure, one-stock type; (3)Heating/cooling control; (4)Serial communications (RS-232C and RS-485); (5)Temperature and analog inputs; (6)High-accuracy: 100 ms sampling (for analog input); (7)Advanced tuning which includes fuzzy self-tuning; (8)Conforms to international EMC and safety standards.

Diagrams

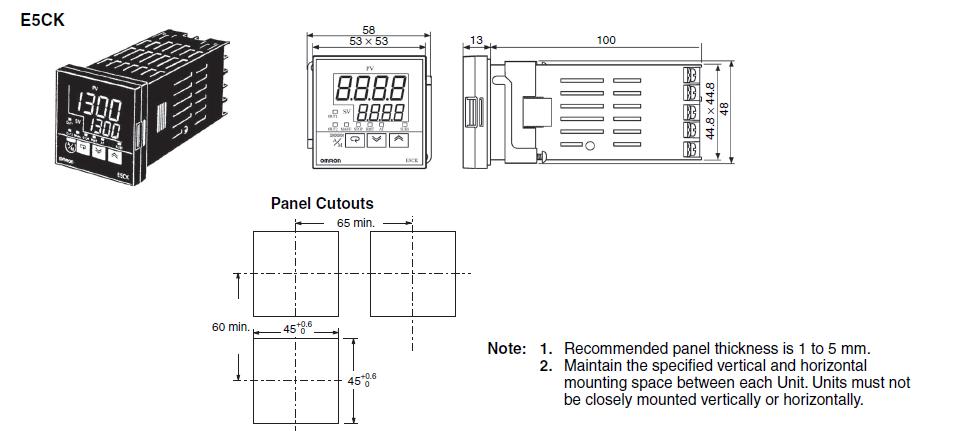

E5CK-RR1 package dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
E5CK-RR1
E5CK-RR1

Omron Industrial

Controllers Temperature Control

Data Sheet

Negotiable
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

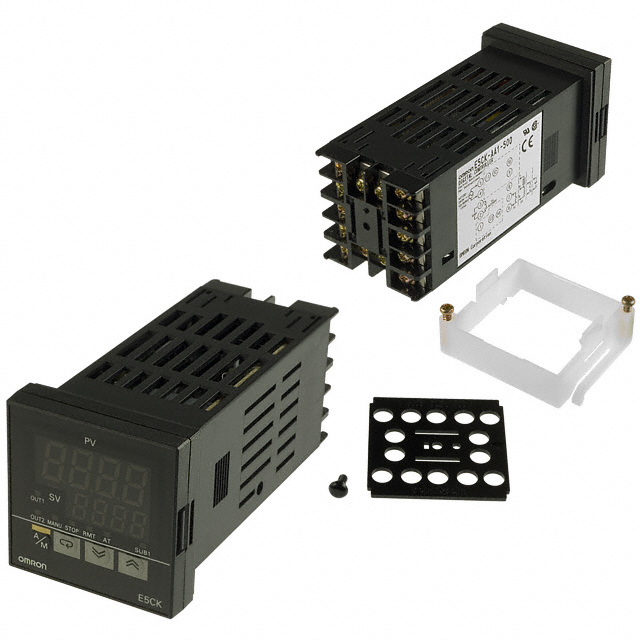

E5CK-AA1-500
E5CK-AA1-500

Omron Industrial

Controllers 1/16 DIN 100-240VAC Field configurable

Data Sheet

Negotiable
E5CK-AA1-500 AC/DC24V
E5CK-AA1-500 AC/DC24V

Omron Industrial

Controllers 1/16 DIN 240VAC STANDARD MODEL

Data Sheet

Negotiable
E5CK-AA1-AC/DC24
E5CK-AA1-AC/DC24

Omron Industrial

Controllers 24V AC/DC BASE UNIT

Data Sheet

Negotiable
E5CK-RR1
E5CK-RR1

Omron Industrial

Controllers Temperature Control

Data Sheet

Negotiable
E5CK-TAA1 AC/DC24
E5CK-TAA1 AC/DC24

Omron Industrial

Controllers STANDARD MODEL 24V AC/DC

Data Sheet

Negotiable
E5CK-TAA1 AC100-240
E5CK-TAA1 AC100-240

Omron Industrial

Controllers PROCESS CONTROLLER

Data Sheet

Negotiable
