Product Summary
The E5CSZ-R1T is a smart thermostat, which is a temperature Controller Easy Setting Using DIP Switch and Simple Functions in DIN 48 × 48 mm-size.
Parametrics
E5CSZ-R1T absolute maximum ratings: (1)Supply voltage: 100 to 240 VAC 50/60 Hz, 24 VAC/VDC, 50/60 Hz; (2)Operating voltage range: 85% to 110% of rated supply voltage; (3)Power consumption: 5 VA, 3 VA/2 W; (4)Control output Voltage output (for driving the SSR): 12 VDC, 21 mA; (5)Ambient temperature: -10 to 55℃ (with no condensation or icing); (6)Ambient humidity: 25% to 85%; (7)Storage temperature: -25 to 65 (with no condensation or icing).
Features
E5CSZ-R1T features: (1)Easy setting using DIP and rotary switches; (2)Models with two alarms added to Series, ideal for temperature alarm applications; (3)Clearly visible digital display with character height of 13.5 mm; (4)Models available with black or white cases; (5)RoHS compliant (Scheduled for January 2006).

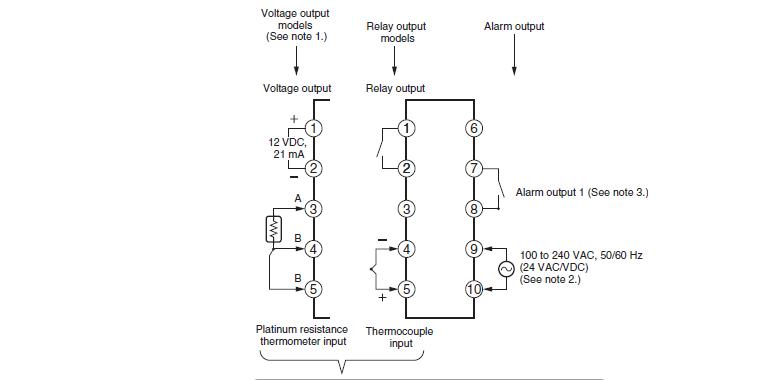

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 E5CSZ-R1T AC100-240 |
|
MEXLA TC RLY OUT 1 ALM AC120 |
Data Sheet |
|
|
||||||
|
E5CSZ-R1TD AC/DC24 |
|
MEXLA TC RLY OUT 1 ALM 24VDC |
Data Sheet |
|
|
||||||
