Product Summary

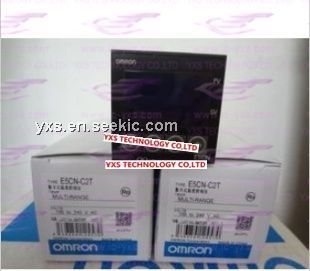

The E5CN-C2T is a basic-type digital temperature controller.
Parametrics
E5CN-C2T absolute maximum ratings: (1)Power supply voltage: No D in model number: 100 to 240 VAC, 50/60 Hz and D in model number: 24 VAC, 50/60 Hz; 24 VDC; (2)Operating voltage range: 85% to 110% of rated supply voltage; (3)Input impedance: Current input: 150 Ω max., Voltage input: 1 MΩ min. (Use a 1:1 connection when connecting the ES2-HB.); (4)Control method: ON/OFF control or 2-PID control (with auto-tuning); (5)External power supply for ES1B: 12 VDC ±10%, 20 mA, short-circuit protection circuit provided; (6)Setting method: Digital setting using front panel keys; (7)Ambient operating temperature: -10 to 55°C (with no condensation or icing), for 3-year warranty: -10 to 50°C; (8)Ambient operating humidity: 25% to 85%.
Features
E5CN-C2T features: (1)Indication Accuracy - Thermocouple input: ±0.3% of PV (previous models: ±0.5%) Pt input: ±0.2% of PV (previous models: ±0.5%) Analog input: ±0.2% FS (previous models: ±0.5%); (2)New E5CN-U Models (Plug-in Models) with analog inputs and current outputs; (3)A PV/SV-status display function can be set to automatically alternate between displaying the status of the Temperature, Controller (auto/manual, RUN/STOP, and alarms) and the PV or SV; (4)Preventive maintenance for relays in the Temperature Controller using a Control Output ON/OFF Counter.

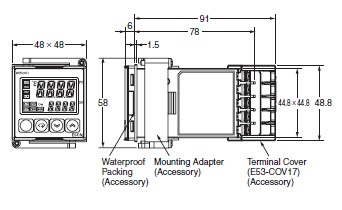

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 E5CN-C2TDU AC/DC24 |
|
TEMP CONTROLLER DGTL 1/16 DIN |
Data Sheet |
|
|
||||||
|
E5CN-C2TU AC100-240 |
|
TEMP CONTROLLER DGTL 1/16 DIN |
Data Sheet |
|
|
||||||
