Product Summary

The 61F-G1PH is a compact plug-in level controller. Applications are (1)None: General-purpose type; (2)L: Long-distance type; (3)H: High-sensitivity type (reverse acting); (4)HY: High-sensitivity type (standard acting); (5)D: Low-sensitivity type; (6)R: Two-wired type.

Parametrics

61F-G1PH absolute maximum ratings: (1)Supply voltage: 24, 100, 110, 120, 200, 220, 230 or 240 VAC; 50/60 Hz; (2)Operating voltage range: 85% to 110% of rated voltage; (3)Interelectrode voltage: 24 VAC; (4)Interelectrode current: Approx. 1 mA; (5)Power consumption: Approx. 3.5 VA max.; (6)Interelectrode operate resistance: Approx. 0 to 4 kΩ.

Features

61F-G1PH features: (1)Wide range of models: long-distance, high and low-sensitivity, and two-wired types available; (2)24/100/110/120/200/220/230/240 VAC operation possible; (3)Easy installation on DIN track; (4)Low-voltage (AC)electrodes; (5)Red LED operation indicator provided; (6)Conforms to EMC and LVD Directives; (7)UL/CSA approved.

Diagrams

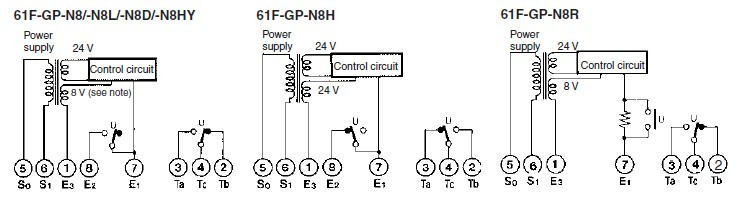

61F-G1PH pin connection
