Product Summary

The 61F-APN is an alternate operation relay.

Parametrics

61F-APN absolute maximum ratings: (1)Response time Operate: 25 ms max.; (2)Minimum pulse width Min. ON time: 40 ms min.; (3)Insulation resistance 100 MΩ min. at 500 VDC (between each terminal and power supply); (4)Dielectric strength 2,000 VAC, 50/60 Hz for 1 min (between each terminal and power supply); (5)Vibration resistance 10 to 55 Hz, 1-mm double amplitude; (6)Ambient temperature Operating: –10 to 55°C; (7)Ambient humidity Operating: 45% to 85% RH; (8)Life expectancy Mechanical: 1,000,000 operations (at operating frequency of 1,800 operations/hour).

Features

61F-APN features: (1)Electronic Relay with the same operation as the G4Q Latching Relay. Compared with the G4Q, the 61F-AN/-APN2 has a shorter power supply application time and no restrictions on; (2)mounting direction Compact Models and Compact Plug-in Models available.

Diagrams

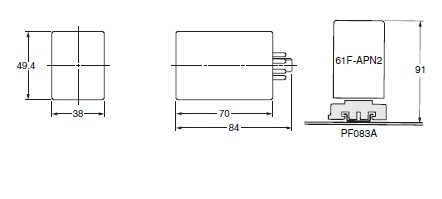

61F-APN dimension figure
