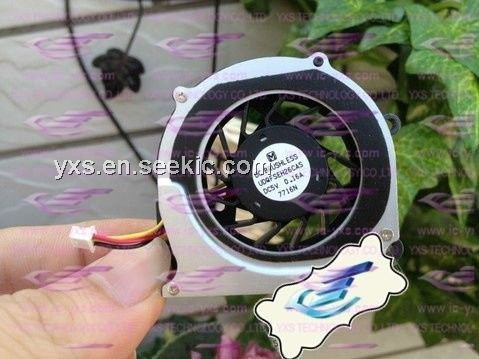

Product Summary

The UDQFSEH26CAS is a quad power driver combines AND logic gates and high-current bipolar outputs with complete output protection. Each of the four outputs will sink 700 mA in the on state. The outputs have a minimum breakdown voltage (load dump) of 60 V and a sustaining voltage of 40 V. The inputs of UDQFSEH26CAS are compatible with TTL and 5 V CMOS logic systems.

Parametrics

UDQFSEH26CAS absolute maximum ratings: (1)Output Voltage, VOUT: 60 V; (2)Over-Current Protected Output Voltage, VOUT: 25 V; (3)Output Current, IOUT: 1.0 A; (4)Supply Voltage, VCC: 7.0 V; (5)Input Voltage, VIN or VEN: 7.0 V; (6)Operating Temperature Range, TA: Prefix UDK: -40℃ to +125℃, Prefix UDN: -20℃ to +85℃, Prefix UDQ: -40℃ to +85℃; (7)Storage Temperature Range, TS: -55℃ to +150℃.

Features

UDQFSEH26CAS features: (1)700 mA Output Current per Channel; (2)Independent Over-Current Protection for Each Driver; (3)Thermal Protection for Device and Each Driver; (4)Low Output-Saturation Voltage; (5)Integral Output Flyback Diodes; (6)TTL and 5 V CMOS Compatible Inputs; (7)Pin-Compatible With UDQ2543B/EB and UDK2549B/EB.

Diagrams

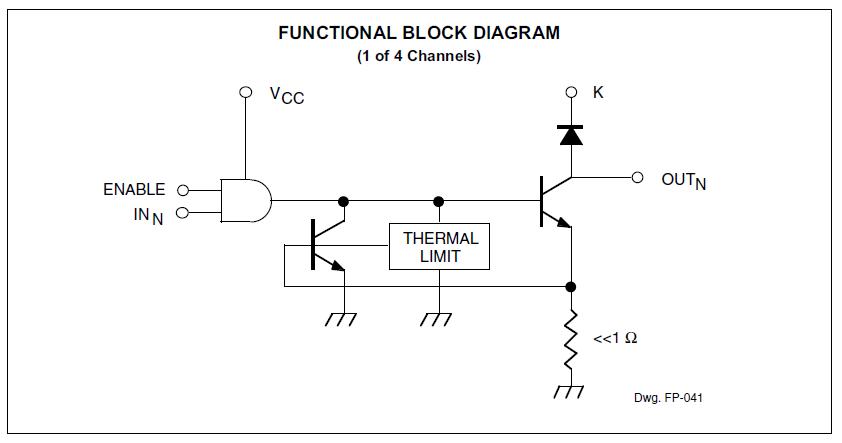

UDQFSEH26CAS block diagram
