Product Summary

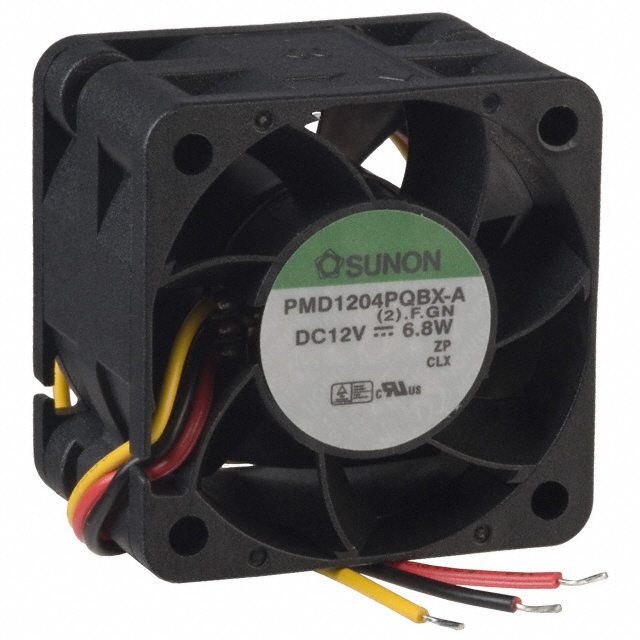

The PMD1204PQBX is a DC brushless fan.
Parametrics
PMD1204PQBX absolute maximum ratings: (1)Rated Voltage: 12 VDC; (2)Operating Voltage Range: 6~13.8 VDC; (3)Starting Voltage: 5 VDC (25 deg. C POWER ON/OFF); (4)Rated Speed: 13000 RPM ±10%; (5)Air Delivery: 23.5 CFM; (6)Static Pressure: 1.15 Inch-H2O; (7)Rated Current: 0.57 AMP; (8)Rated Power: 6.8 WATTS; (9)Noise Level: 51.5 dB(A); (10)Direction of Rotation: Counter-clockwise viewed from front of fan blade; (11)Operating Temperature: -10 to +70℃; (12)Storage Temperature: -40 to +70℃.

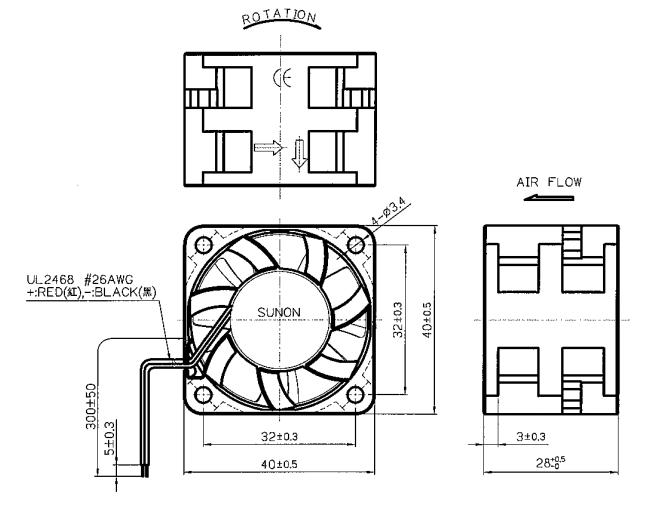

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PMD1204PQBX-A (2) F |
|
FAN 12VDC 40X28MM 23.5CFM W/TACH |
Data Sheet |
Negotiable |
|
||||||||||||||||||||
 |
PMD1204PQBX-A.(2).F.GN |
|
FAN 12VDC 40X28MM 23.5CFM TAC |
Data Sheet |
|
|
||||||||||||||||||||
