Product Summary

The E3S-AR61 is a General-Purpose Photoelectric Sensor.



Parametrics

E3S-AR61 absolute maximum ratings: (1)Max. load: 100 mA max. at 30 VDC; (2)Response time 0.5 ms max. ON,: 0.5 ms max. OFF; (3)OFF-delay timer: 0 to 100 ms with 3/4 turn adjuster; (4)Ambient temperature Operating: -25° to 55°C; (5)Ambient temperature Storage: -40° to 70°C .

Features

E3S-AR61 features: (1)Fast 0.5 msec response time for high-speed sensing; (2)Extended sensing distances up to 7 meters; (3)Self-diagnostic functions available; (4)User-friendly features for easy installation and use; (5)Meets: NEMA 4X, 6 and IP67; (6)Many mounting configurations available; (7)Choose prewired or connector-ready models; (8)E3S-AD Series includes 10 cm short range diffuse version.

Diagrams

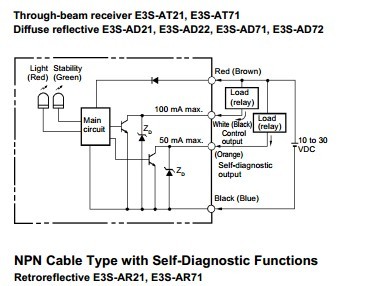

E3S-AR61 pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
E3S-AR61
E3S-AR61
Omron Industrial
Photoelectric Sensors NPN POLAR RETROREFL
Data Sheet
0-1: $127.34
1-5: $118.50
5-10: $110.81
10-25: $104.05
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
E3S-2B4
E3S-2B4
Omron Industrial
Photoelectric Sensors PHOTOELECTRIC SENSOR 653-E3S-2B4
Data Sheet
Negotiable
E3S-2B41
E3S-2B41
Omron Industrial
Photoelectric Sensors Photoelectric Sensor
Data Sheet
0-1: $153.37
1-2: $147.65
2-5: $141.95
5-10: $136.22
E3S-2B41-5M
E3S-2B41-5M
Omron Industrial
Photoelectric Sensors PHOTOELECTRIC SENSOR
Data Sheet
Negotiable
E3S-2DB41 2M
E3S-2DB41 2M
Omron Industrial
Photoelectric Sensors Receiver Only for E3 S-2B41
Data Sheet
Negotiable
E3S-2DE4
E3S-2DE4
Omron Industrial
Photoelectric Sensors DETECTOR
Data Sheet
0-1: $68.51
1-5: $64.00
5-10: $61.97
10-20: $60.85
E3S-2DE4 5M
E3S-2DE4 5M
Omron Industrial
Photoelectric Sensors PES for Honda
Data Sheet
Negotiable
