Product Summary

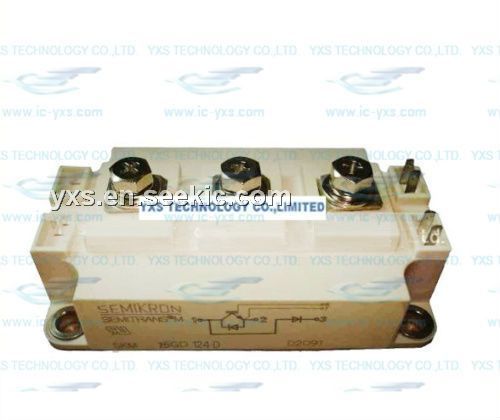

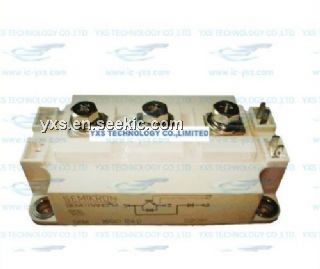

The SKM75GD124D is an IGBT module. The typical applications of the device include switched mode power supplies, DC servo and robot drives, three phase inverters for AC motor speed control and switching.
Parametrics
SKM75GD124D absolute maximum ratings: (1)VCES: 1200V at Tj=25℃; (2)IC: 75A at Tj=150℃, Tcase=25℃; 50A at Tj=150℃, Tcase=80℃; (3)ICRM: 100A at ICRM=2ICnom; (4)VGES: 100A; (5)tpsc: 10μs; (6)IF: 75A at Tj=150℃, Tcase=25℃; 50A at Tj=150℃, Tcase=80℃; (7)IFRM: 100A at IFRM=2IFnom; (8)IFSM: 550A; (9)It(RMS): 100A; (10)Tvj: -40 to 150℃; (11)Tstg: -40 to 125℃; (12)Visol: 2500V.
Features
SKM75GD124D features: (1)MOS input; (2)N channel, homogeneous Si; (3)low inductance case; (4)very low tail current with low temperature dependence; (5)high short circuit capability, selt limiting to 6Icnom; (6)latch-up free; (7)fast&soft inverse cal diodes; (8)isolated copper baseplate using DCB direct bonding technology; (9)large clearance and creepage distance.

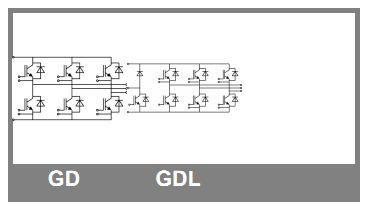

Diagrams
