SKM145GAL174DN

SKM145GAL174DN, Low Loss IGBT Module, 1700V, 160A, Semikron International

Rated 5 Rating 5 | reviews | Write a review

Price:: US $100.00~104.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 25 :	104.00 / Piece
27 ~ 35 :	102.00 / Piece
37 ~ 46 :	100.00 / Piece

PartNumber:: SKM145GAL174DN

Brand:: Semikron International - SEMIKRON | D/C: 02+

Availability:: Supply Ability: 300/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. Jack's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-03-28

From Other Seller

Part Number:SKM145GAL174DN
US $100.00 - 104.00
Quantity:

piece

Product Summary

The SKM145GAL174DN is a Low Loss IGBT Module. The applications of the SKM145GAL174DN include AC inverter drivers on mains, 575-750VAC, DC bus voltage 750-1200VDC, public transport (auxiliary syst.), switching(not for liner use).

Parametrics

SKM145GAL174DN absolute maximum ratings: (1)Tj= 25℃, VCES: 1700V; (2)Tj= 150℃, Tcase= 25℃, Ic: 160A; Tcase= 80℃, Ic: 110A; (3)ICRM= 2×1Cnom, ICRM: 200A; (4)VGES: ±20V; (5)VCC= 600V; VGE≤ 20V; Tj= 125℃, VCES＜1200V, tpsc: 10μs.

Features

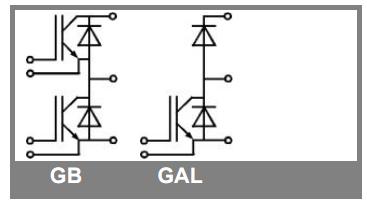

SKM145GAL174DN features: (1)N channel, Homogeneous Silicon structure (NPT-Non punch-through IGBT); (2)Low inductance case; (3)High short circuit capability, self limiting to 6×1cnom; (4)Fast & soft inverse CAL diodes; (5)Without hard mould; (6)Large clearance(10mm) and creepage distances(20mm).
