Product Summary

The SKKE600F12 is a fast diode module. The applications of the device include freewheeling diodes for IGBT, freewheeling dioe for inductive loads, brake choppers, inverters and DC choppers, AC motor control, boost choppers, and up to 20KHz.

Parametrics

SKKE600F12 absolute maximum ratings: (1)IFAV: 360A when sin, 180, Tc=85℃; (2)IFAV: 305A when sin, 180, Tc=100℃; (3)IFSM: 7000A wjem Tvk=25℃, 10ms; (4)IFSM: 5800A wjem Tvk=150℃, 10ms; (5)i2t: 245000A2s wjem Tvk=25℃, 10ms; (6)i2t: 168000A2s wjem Tvk=150℃, 10ms; (7)VF: 2.5V max when Tvj=25℃, IF=600A ; (8)V(TO): 1.2V max when Tvj=150℃; (9)rt: 1.9mΩ max when Tvj=150℃; (10)IRD: 4mA max when Tvj=25℃, VRD=VRRM; (11)IRD: 30mA max when Tvj=150℃, VRD=VRRM.

Features

SKKE600F12 features: (1)CAL (controlled axial lifetime) technology, patent No. 431044; (2)heat transfer through aluminium oxide DCB ceramic isolated meatal baseplate; (3)small recovered change; (4)fast and soft recovfery CAL diodes; (5)UL recognized, file no 63532.

Diagrams

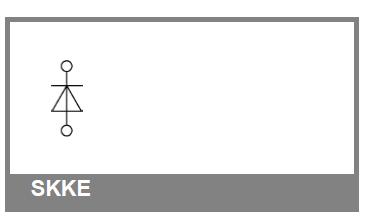

SKKE600F12 block diagram
