Product Summary

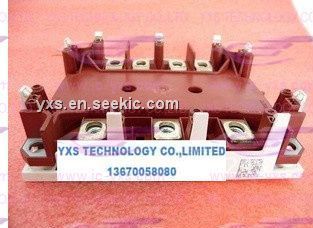

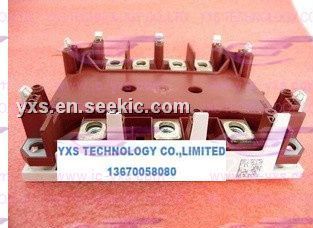

The SKIM250GD128D is an IGBT Module. The applications of the SKIM250GD128D include switched mode power supplies, three phase inverters for AC motor speed control.

Parametrics

SKIM250GD128D absolute maximum ratings: (1)VCES: 1200V; (2)IC: 240A; (3)ICRM: 400A; (4)VGES: ±20V; (5)Tj: -40 to 150℃; (6)Tcop: 125℃; (7)Visol: 2500V; (8)IF: 240A; (9)IFRM: 400A; (10)IFSM: 2200A.

Features

SKIM250GD128D features: (1)N channel, homogenous planar IGBT Silicon structure with n+ buffer layer in SPT technology; (2)Low inductance case; (3)Fast & soft inverse CAL diodes; (4)Isolated by AIN DCB ceramic plate; (5)Pressure contact technology for thermal contacts; (6)Spring contact sysstem to attach driver PCB to the control terminals; (7)Integrated temperature sensor.

Diagrams

SKIM250GD128D block diagram
