Product Summary

The SKIIP23NAB126V10 is a 3-phase bridge rectifier + brake chopper + 3-phase bridge inverter. Typical applications of the SKIIP23NAB126V10 include inverter up to 16 kVA and typical motor power 7,5 kW.

Parametrics

SKIIP23NAB126V10 absolute maximum ratings: (1)IGBT-Inverter: VCES: 1200V; IC, Ts = 25 (70) ℃: 41 (31)A; ICRM, tp < 1 ms: 50A; VGES: ±20V; Tj: -40 to + 150℃; (2)Diode-Inverter: IF, Ts = 25(70) ℃: 30(22) A; IFSM, tp = 10 ms: 50A; Tj: -40 to + 150℃; (3)Module, ItRMS, per power terminal (20 A / spring): 40A; (4)Tstg: Top≦Tstg: -40 to + 125℃; (5)Visol, AC, 1 min: 2500V.

Features

SKIIP23NAB126V10 features: (1)Fast Trench IGBTs; (2)Robust and soft freewheeling diodes in CAL technology; (3)Highly reliable spring contacts for electrical connections; (4)UL recognised file no. E63532.

Diagrams

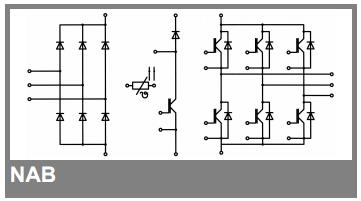

SKIIP23NAB126V10 block diagram
