Product Summary

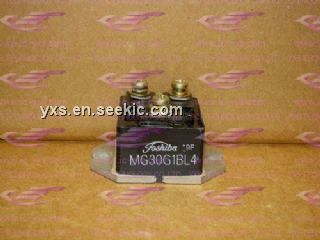

The MG30G1BL4 is a transistor module.

Parametrics

MG30G1BL4 absolute maximum ratings: (1)VCBO(V): 600; (2)VCBX(V): 600; (3)VEBO(V): 6; (4)IC(A): 30; (5)ICP(A): 60; (6)Ia(A): 3.0; (7)Pc(W): 250; (8)Tj(℃): 150; (9)Tstg(℃): -40 to 125; (10)ICBO(mA): 1.0; (11)Vca(V): 600; (12)IEBO(mA): 200; (13)Vea(V): 6; (14)VCEO(V): 450; (15)Ic(A): 0.5.

Diagrams

MG30G1BL4 block diagram
