Product Summary

The MG10H6EM1 is an N channel IGBT.

Parametrics

MG10H6EM1 absolute maximum ratings: (1)Collector emitter Voltage: 600V; (2)Gate Emitter Voltage: ±20V; (3)Collector Current, DC IC: 100A; 1ms ICP: 200A; (4)Collector Power dissipation, Pc: 300w; (5)junction Temperature, Tj: 150℃; (6)Storage Temperature range: -40 to 125℃; (7) Isolation Voltage: 2500V; (8) screw torque: 2/3 Nm.

Features

MG10H6EM1 features: (1)High input impedance; (2)high speed: tf=1.0 μs; (3)Low saturation voltage: 2.7V; (4)enhancement mode; (5)The electrodes are Isolated from case.

Diagrams

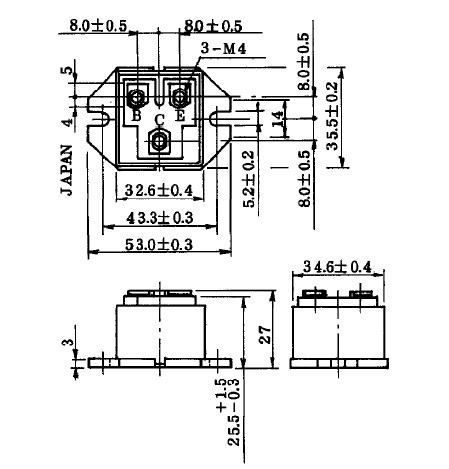

MG10H6EM1 block diagram
