Product Summary

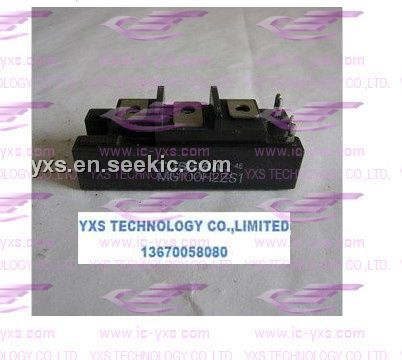

The MG100H2ZS1 is a westcode transistor module which is designed for use in various types of motor control and other high power switching applicantions and it consists of insulated types.

Parametrics

MG100H2ZS1 absolute maximum ratings: (1)VCBO: 600 V; (2)VCEX(sus): 600 V; (3)VCEO(sus): 550 V; (4)VEBO: 7 V; (5)Ic(DC): 100 A; (6)ICP(A): 200 A at 1msec; (7)IF(DC): 100 A; (8)IFM(A): 200 A at 1msec; (9)IB: 3 A; (10)PC(W): 400 W; (11)hFE min: 200.

Features

MG100H2ZS1 features: (1)electrodes are isolated from the heat sink (2500V AC); (2)high DC current gain (hFE) (80 or 100 MIN); (3)low saturation voltage (2 or 2.5 V maximum); (4)wide safe operating area.

Diagrams

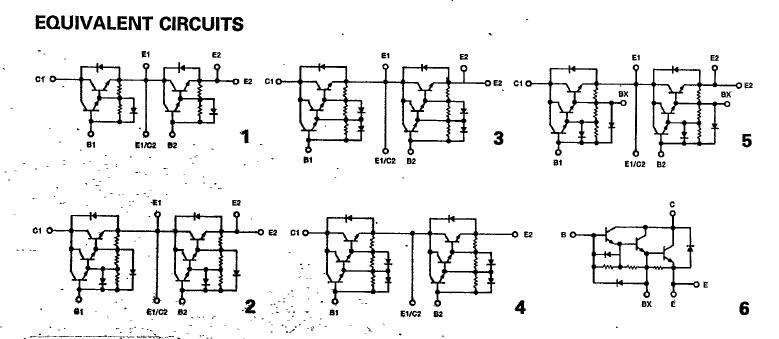

MG100H2ZS1 block diagram
