Product Summary

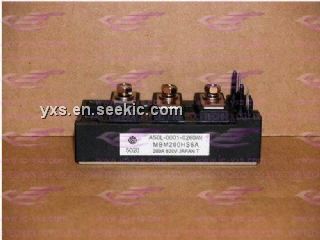

The MBM200HS6A is an IGBT module range with soft and fast (SFD) free-wheeling diode.In order to maintain switching losses to minimal, improving Free Wheeling Diodes, (FWD), is essential and Hitachis version of this is the Soft and Fast Recovery (SFD) Free Wheeling Diode. Basically, improvements have been achieved in the following key requirements.

Parametrics

MBM200HS6A absolute maximum ratings: (1)VCES: 600V; (2)IC: 200A; (3)PC: 730W.

Features

MBM200HS6A features: (1)High speed small recovery time, tr; (2)Low loss small reverse-peak current, Irp; (3)Low noise small rate of charge of recovery current, di/dt Ultimately reducing your energy losses.
