Product Summary

The FZ600R17KE3 is an IGBT-module.

Parametrics

FZ600R17KE3 absolute maximum ratings: (1)Kollektor-Emitter-Sperrspannung collector-emitter voltage VCES: 1700 V; (2)Kollektor-Dauergleichstrom TC = 80℃, IC,nom: 600 A; (3)DC-collector current TC = 25℃, IC: 840 A; (4)Periodischer Kollektor Spitzenstrom repetitive peak collector current, tP = 1 ms, TC = 80℃, ICRM: 1200 A; (5)Gesamt-Verlustleistung total power dissipation TC=25℃, Transistor, Ptot: 3150W; (6)Gate-Emitter-Spitzenspannung gate-emitter peak voltage VGES: +/-20V.

Features

FZ600R17KE3 features: (1)Kollektor-Emitter Satigungsspannung collector-emitter saturation voltage IC = 1800 A, VGE = 15V, Tvj = 25℃ VCE sat:2.45 V; (2)IC = 1800 A, VGE = 15V, Tvj = 125℃ VCE sat: 6.4 V; (3)Eingangskapazita input capacitance f = 1MHz,Tvj = 25℃,VCE = 25V, VGE = 0V Cies: 54 nF.

Diagrams

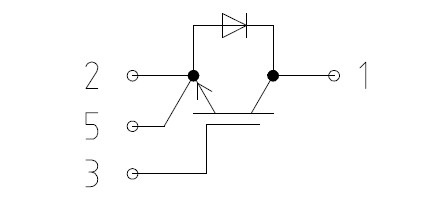

FZ600R17KE3 block diagram
