Product Summary

The FF400R06KE3 is a 62mm C-Serien module.

Parametrics

FF400R06KE3 absolute maximum ratings: (1)collector-emitter voltage, VCES: 600V; (2)DC-collector curretn, IC: 400A; (3)repetitive peak collector curretn, ICRM: 800A; (4)total power dissipation, Ptot: 1250W; (5)gate-emitter peak voltage, VGES: ±20V.

Features

FF400R06KE3 features: (1)forward voltage, VF: 1.55 to 1.95V; (2)peak reverse recovery current, IRM: 270A; (3)recovered charge, QF: 15μC; (4)reverse recovery energy, Erec: 3.6mJ; (5)thermal resistance, junction to case, RthJC: 0.22K/W.

Diagrams

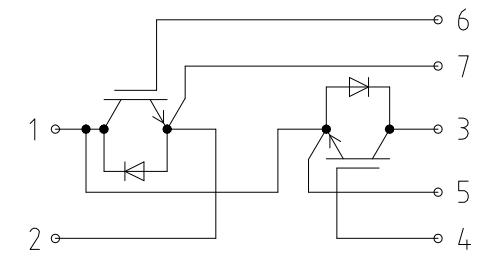

FF400R06KE3 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
FF400R06KE3
FF400R06KE3
Infineon Technologies
IGBT Modules 600V 400A DUAL
Data Sheet
0-6: $99.05
6-10: $89.14
